Frequency2300-2700
Gain11 dBi
VSWR≤1.5
Nominal Impedance50 Ω
PolarizationVertical
Horizontal Beamwidth90°
Front-to-Back Ratio≥23
Maximum Input Power100 W
RF Product · Sector Panel Antenna
Sector Panel Antenna, 2300-2700, 11 dBi GL-DY2327V9011
SKUGL-DY2327V9011

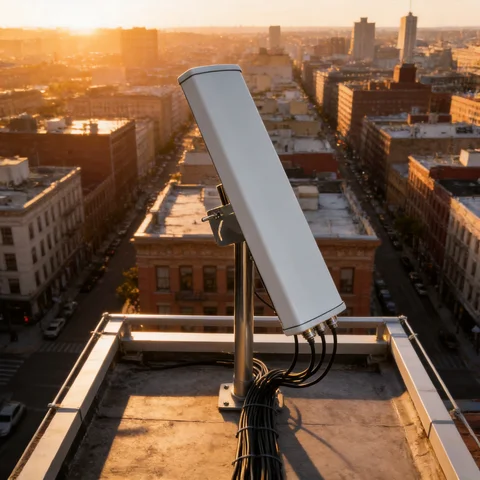

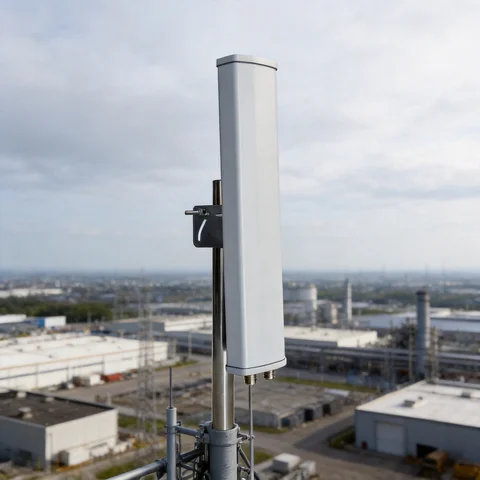

GL-DY2327V9011 is a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Key values include frequency 2300-2700, gain 11 dBi, and connector N-K.
2300-2700230×128×56N-K
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesPaid sample; fee credited toward a volume order
Standard lead time14 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY2327V9011
Frequency2300-2700
Dimensions230×128×56
ConnectorN-K

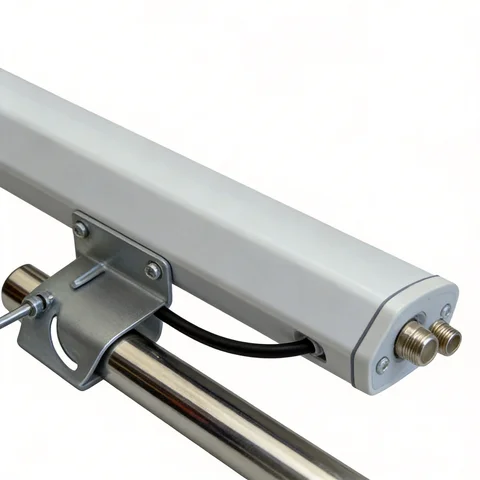

Mounting￠35～￠75
Applicationbase-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
Gain11 dBi
VSWR≤1.5
Nominal Impedance50 Ω
PolarizationVertical
Horizontal Beamwidth90°
Front-to-Back Ratio≥23
Maximum Input Power100 W
Weight1.0
Radome MaterialUPVC
MaterialUPVC
ColorGray
Mounting Method￠35～￠75
Operating Temperature-40°C to +65 °C
CategorySector Panel Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.Dimensions230×128×56
ConnectorN-K
Mounting￠35～￠75
Weight1.0
Radome MaterialUPVC
MaterialUPVC
ColorGray
Mounting Method￠35～￠75
Operating Temperature-40°C to +65 °C
SKUGL-DY2327V9011
Applicationbase-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
CategorySector Panel Antenna
