GL-DY2327VH6517 2300-2700 MHz 17 dBi 2xN-K Sector Panel Antenna

Product Overview

GL-DY2327VH6517 is a sector panel antenna prepared for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. The confirmed table includes Frequency Range: 2300-2700; Gain: 17; Polarization: Vertical + Horizontal; VSWR: <=1.5; Nominal Impedance: 50.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

• GL-DY2327VH6517 Sector Panel Antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
• Operating band: 2300-2700
• Gain: 17
• Polarization: Vertical + Horizontal
• VSWR: <=1.5
• Connector: 2xN-K
• Installation: Dia. 35～Dia. 75

Technical Specifications

Mechanical and Installation Notes

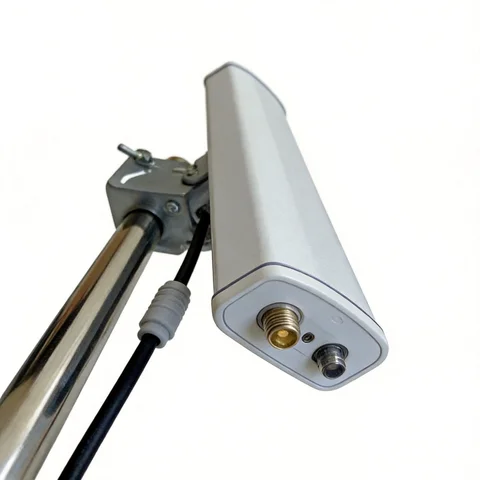

Use the listed mounting method: Dia. 35～Dia. 75. Match the RF interface to 2xN-K. Reserve space for 850×128×56. Review operating limits against -40°C to +65 °C.

Applications and Industries

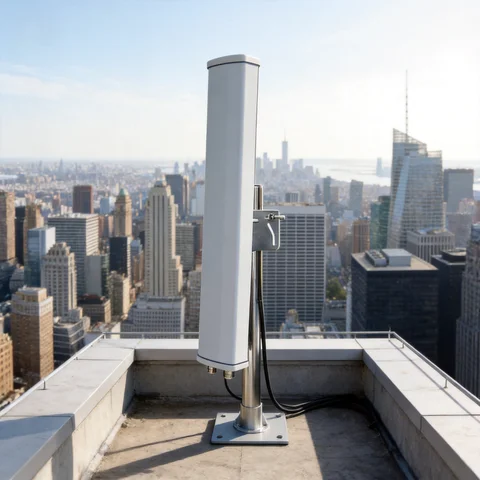

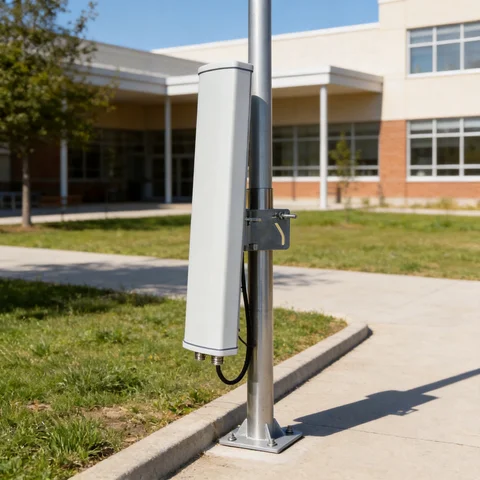

GL-DY2327VH6517 can be considered for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

• Engineering file set: 1 supporting local document(s) used to prepare this listing
• Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY2327VH6517, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY2327VH6517 support?

GL-DY2327VH6517 is listed with 2300-2700. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY2327VH6517?

Connector: 2xN-K. Confirm variants before ordering.

How is GL-DY2327VH6517 installed?

Installation: Dia. 35～Dia. 75. Dimensions: 850×128×56.

Can GL-DY2327VH6517 be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.
