GL-DY3338S9014 Sector Panel Antenna, 3300-3800, 14 dBi

Name: GL-DY3338S9014 Sector Panel Antenna, 3300-3800, 14 dBi
Brand: Rftech
SKU: GL-DY3338S9014

SKU GL-DY3338S9014

GL-DY3338S9014 is a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Key values include frequency 3300-3800, gain 14 dBi, and connector 2xN-K.

SKU GL-DY3338S9014

Frequency 3300-3800

Dimensions 350×128×56

Connector 2×N-K

Mounting ￠35～￠75

Application base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY3338S9014
Frequency	3300-3800
Dimensions	350×128×56
Connector	2×N-K
Mounting	￠35～￠75
Application	base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
Gain	14 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	±45°
Horizontal Beamwidth	90°
Front-to-Back Ratio	≥23
Isolation	≥28
Maximum Input Power	100 W
Weight	1.3
Radome Material	UPVC
Material	UPVC
Color	Gray
Mounting Method	￠35～￠75
Operating Temperature	-40°C to +65 °C
Category	Sector Panel Antenna

Product Overview

GL-DY3338S9014 is a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. The page gives project teams a quick way to review RF fit, installation style, connector needs, mechanical size, and environmental requirements before sampling.

Key Features

Frequency Range: 3300-3800
Gain: 14 dBi
VSWR: ≤1.5
Connector Type: 2xN-K
Dimensions: 350×128×56
Mounting Method: ￠35～￠75

Technical Specifications

Frequency Range	3300-3800
Gain	14 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	±45°
Horizontal Beamwidth	90°
Front-to-Back Ratio	≥23
Isolation	≥28
Maximum Input Power	100 W
Connector Type	2xN-K
Dimensions	350×128×56
Weight	1.3
Radome Material	UPVC
Material	UPVC
Color	Gray
Mounting Method	￠35～￠75
Operating Temperature	-40°C to +65 °C

Mechanical and Installation Notes

Check the operating band, gain, beamwidth, connector, mounting method and available installation space before release. The listed interface is 2xN-K. The mounting reference is ￠35～￠75.

Applications and Industries

GL-DY3338S9014 can be considered for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Typical checks include radio band, coverage target, mounting surface, connector mating, cable routing, environmental exposure and expected order quantity.

Resources

Product datasheet: GL-DY3338S9014.pdf

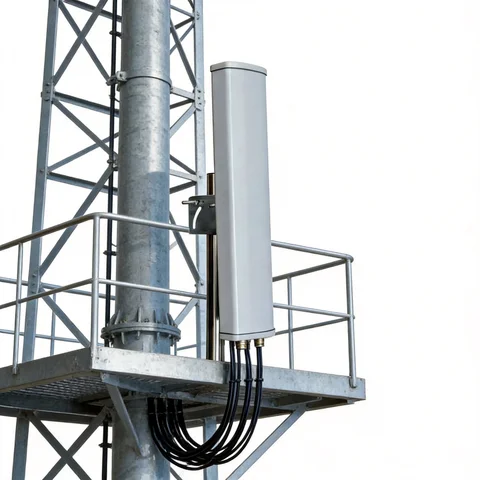

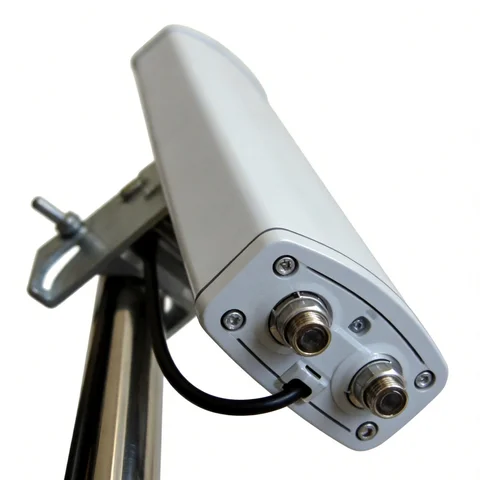

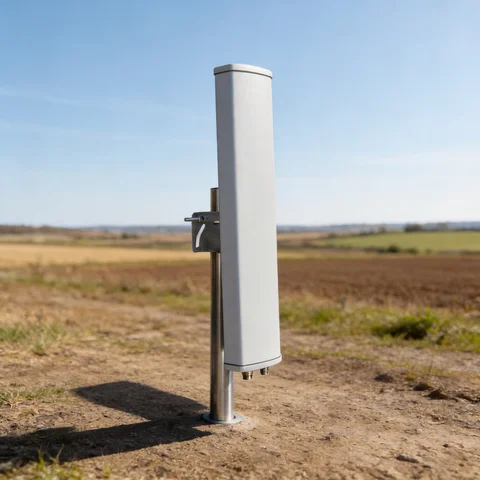

SKU-specific product image and three application images are included for this model.

FAQ

What is the main use for GL-DY3338S9014?

GL-DY3338S9014 is selected as a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks.

Which specification should be checked first?

Start with the operating band, then confirm gain, beamwidth, impedance, connector, mounting method and environmental conditions.

Can GL-DY3338S9014 be customized?

Provide the SKU, target band, connector or cable request, mounting requirement, environment and quantity for confirmation.

Selection and Project Support

GL-DY3338S9014 Sector Panel Antenna, 3300-3800, 14 dBi is listed by Rftech for RF antenna and wireless connectivity projects in the Sector Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY3338S9014).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
