Frequency468-700
Gain11
PolarizationVertical
VSWR≤1.7
Nominal Impedance50
Horizontal Beamwidth90°
Front-to-Back Ratio≥20
Maximum Input Power200
RF Product · Sector Panel Antenna
Sector Panel Antenna, 468-700, 11 GL-DY4070V9011
SKUGL-DY4070V9011

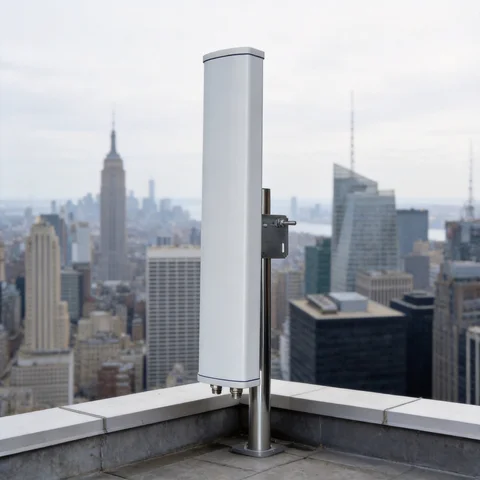

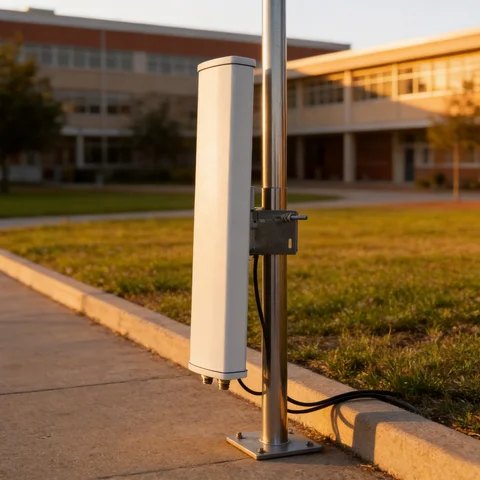

GL-DY4070V9011 is a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Key specifications include frequency 468-700, gain 11, connector N-K, mounting ￠35～￠75. Suitable for RF projects that require verified model-specific specifications and configurable sampling support.
468-700830×300×146N-K
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesPaid sample; fee credited toward a volume order
Standard lead time14 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY4070V9011
Frequency468-700
Dimensions830×300×146

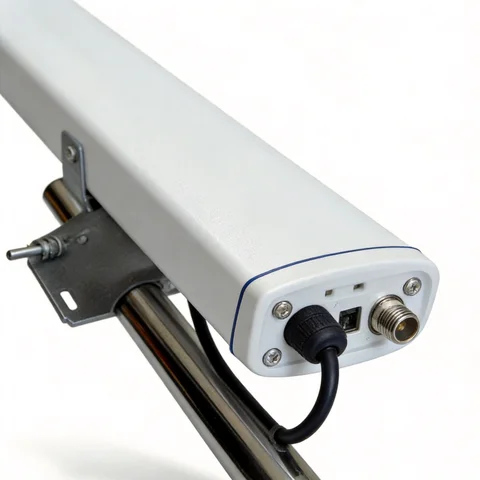

ConnectorN-K
Mounting￠35～￠75
Applicationbase-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
Gain11
PolarizationVertical
VSWR≤1.7
Nominal Impedance50
Horizontal Beamwidth90°
Front-to-Back Ratio≥20
Maximum Input Power200
Weight7.0
RadomeUPVC
MaterialUPVC
ColorGray
Operating Temperature-40°C to +65 °C
CategorySector Panel Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.Dimensions830×300×146
ConnectorN-K
Mounting￠35～￠75
Weight7.0
RadomeUPVC
MaterialUPVC
ColorGray
Operating Temperature-40°C to +65 °C
SKUGL-DY4070V9011
Applicationbase-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
CategorySector Panel Antenna
Current documentation
Downloads
Files shown here are linked to this exact product record.Documented use cases
Applications
