GL-DY5158V6515 5150-5850 MHz 15 dBi N-K Sector Panel Antenna

Product Overview

GL-DY5158V6515 is a sector panel antenna prepared for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. The confirmed table includes Frequency Range: 5150-5850; Gain: 15; Polarization: Vertical; VSWR: <=1.7; Nominal Impedance: 50.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

• GL-DY5158V6515 Sector Panel Antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
• Operating band: 5150-5850
• Gain: 15
• Polarization: Vertical
• VSWR: <=1.7
• Connector: N-K
• Installation: Dia. 35～Dia. 75

Technical Specifications

Mechanical and Installation Notes

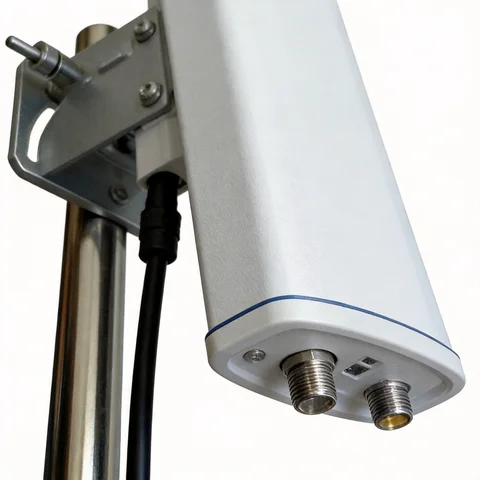

Use the listed mounting method: Dia. 35～Dia. 75. Match the RF interface to N-K. Reserve space for 230×128×56. Review operating limits against -40°C to +65 °C.

Applications and Industries

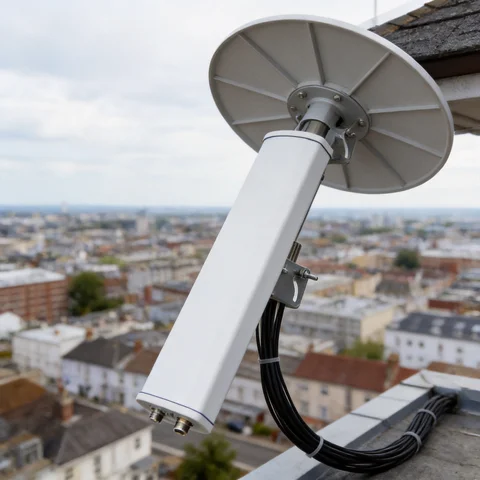

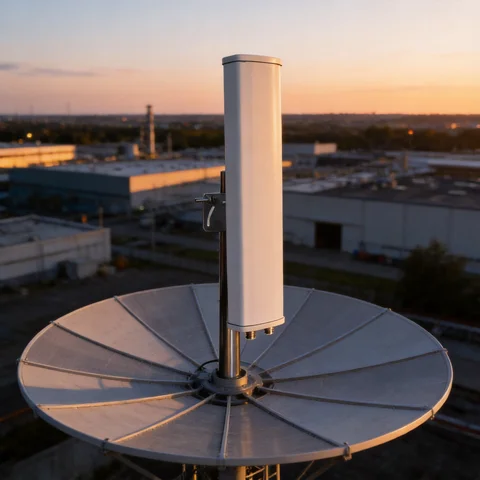

GL-DY5158V6515 can be considered for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

• Engineering file set: 1 supporting local document(s) used to prepare this listing
• Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY5158V6515, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY5158V6515 support?

GL-DY5158V6515 is listed with 5150-5850. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY5158V6515?

Connector: N-K. Confirm variants before ordering.

How is GL-DY5158V6515 installed?

Installation: Dia. 35～Dia. 75. Dimensions: 230×128×56.

Can GL-DY5158V6515 be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.
