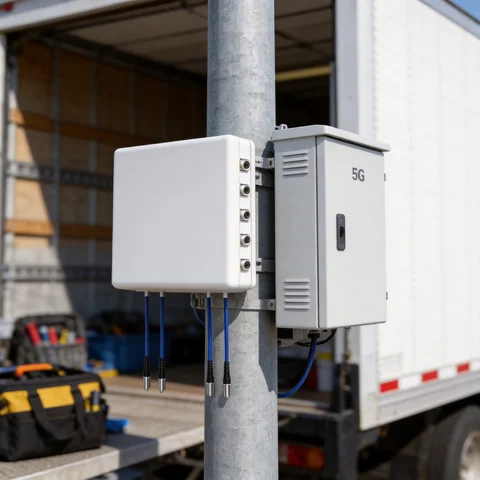

GL-DY7040S4707 MIMO antenna application scene 1

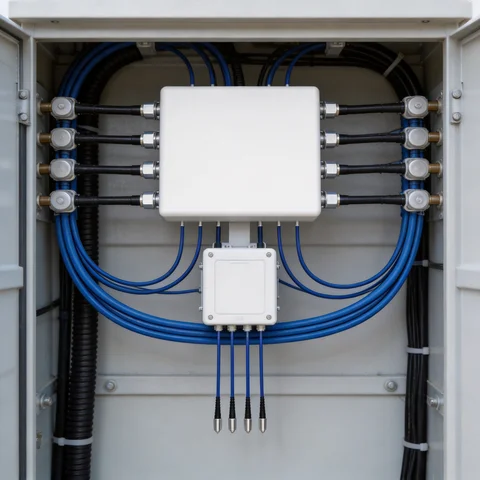

GL-DY7040S4707 MIMO antenna application scene 2

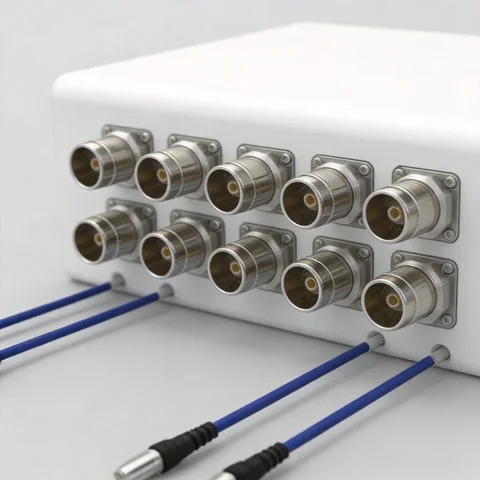

GL-DY7040S4707 MIMO antenna connector and mounting detail view

RF Product MIMO Antenna

GL-DY7040S4707 698-4000MHz 4×N-K Mimo Antenna for RF Systems

Name: GL-DY7040S4707 698-4000MHz 4×N-K Mimo Antenna for RF Systems
Brand: Rftech
SKU: GL-DY7040S4707

SKU GL-DY7040S4707

GL-DY7040S4707 is a MIMO antenna for 2G/3G/5G/WLAN/WIFI/LTE System. Its RF data lists 698-960MHz/1710-2700MHz/3400-4000 MHz operation, 6/7/8 dBi gain, ±45° polarization, and VSWR ≤1.8. Mechanical selection should confirm 4×N-K connector, 308×420×82 dimensions against the installation plan. Design details include multi-input and multi-output technology, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to + 65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.

SKU GL-DY7040S4707

Frequency 698-960MHz/1710-2700MHz/3400-4000

Dimensions 308×420×82

gain 6/7/8

polarization ±45°

vswr ≤1.8

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY7040S4707
Frequency	698-960MHz/1710-2700MHz/3400-4000
Dimensions	308×420×82
gain	6/7/8
polarization	±45°
vswr	≤1.8
impedance	50
connector	4×N-K
temperature	-40°C to + 65 °C
Category	MIMO Antenna

Product Overview

Key Features

Multi-input and Multi-output Technology

Technical Specifications

Frequency Range	698-960MHz/1710-2700MHz/3400-4000
Polarization	±45°
VSWR	≤1.8
Gain	6/7/8
Horizontal Beamwidth	75°/70°/65°
Vertical Beamwidth	70°/65°/60°
Front-to-Back Ratio	≥20
Input Impedance	50
Maximum Input Power	50
Lightning Protection	DC Ground
Connector Type	4×N-K
Dimensions	308×420×82
Radome Material	UPVC
Radome Color	Gray
Operating Temperature	-40°C to + 65 °C
Rated Wind Velocity	60

Application Scenarios

GL-DY7040S4707 is suitable for 2G/3G/5G/WLAN/WIFI/LTE System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY7040S4707 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY7040S4707 698-4000MHz 4×N-K Mimo Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the MIMO Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY7040S4707).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
