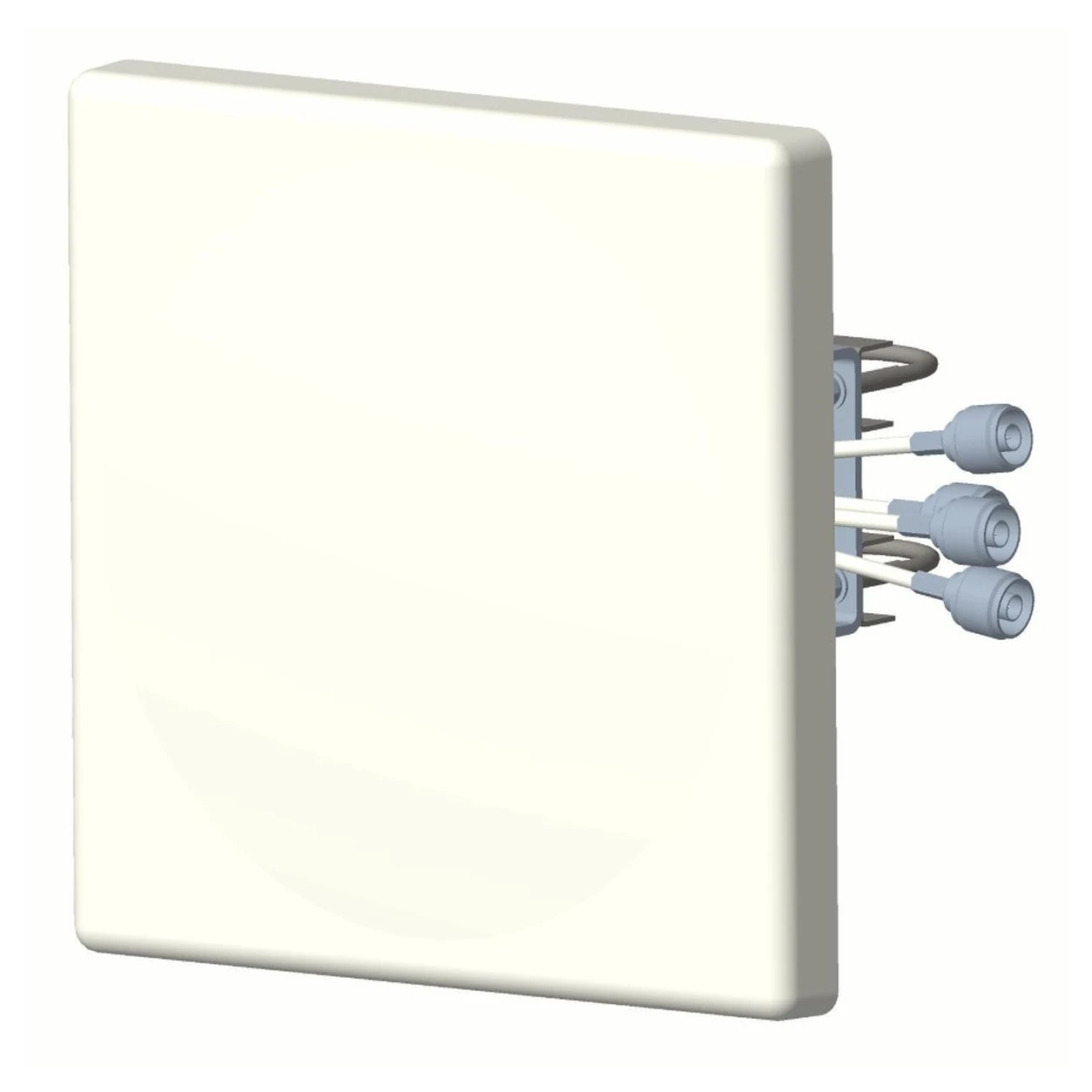

GLVH2471G10BKRY tri-band WiFi 7 flat antenna with four N-male ports

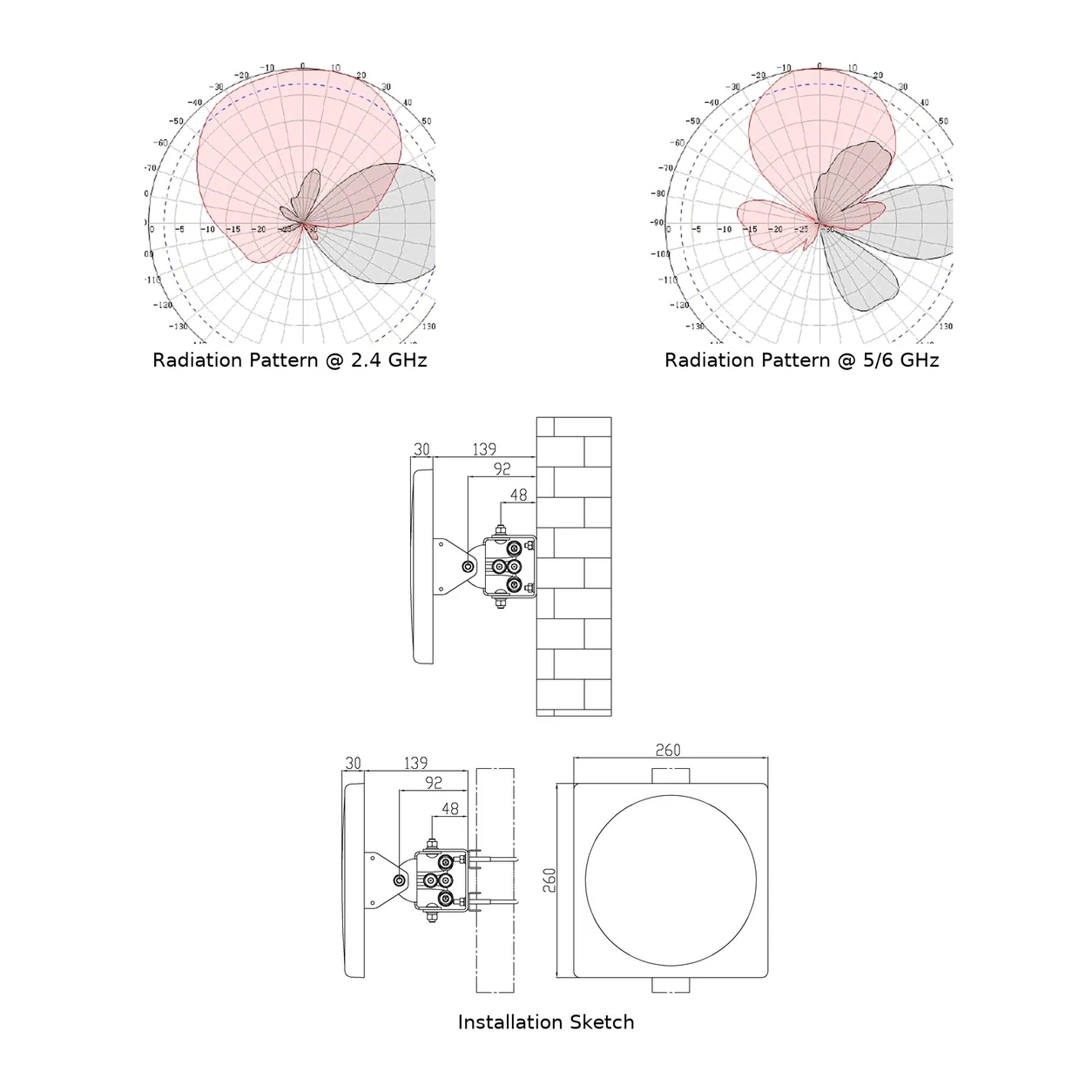

GLVH2471G10BKRY radiation patterns and mast or wall installation drawing

RF Product MIMO Antenna

GLVH2471G10BKRY 2.4/5/6 GHz WiFi 7 Flat Antenna

SKU GLVH2471G10BKRY

Tri-band dual-polarization flat antenna for 2.4, 5 and 6 GHz WiFi 7 MIMO systems, with four N-male ports and up to 12 dBi peak gain.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GLVH2471G10BKRY

Frequency 2400-2500 / 5150-6000 / 6000-7125 MHz

Dimensions 261 x 261 x 30 mm

Connector 4 × N Male

Mounting Wall or Pole Mount

Application Tri-band WiFi 7 MIMO systems

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLVH2471G10BKRY
Frequency	2400-2500 / 5150-6000 / 6000-7125 MHz
Dimensions	261 x 261 x 30 mm
Connector	4 × N Male
Mounting	Wall or Pole Mount
Application	Tri-band WiFi 7 MIMO systems
Frequency Band	2400-2500 / 5150-6000 / 6000-7125 MHz
Polarization	Vertical and horizontal
Peak Gain (Without Cable)	9.5 / 11 / 12 dBi
Horizontal 3 dB Beamwidth	60° / 55° / 45°
Vertical 3 dB Beamwidth	55° / 50° / 40°
VSWR	≤ 2.0
Isolation	≥ 30 dB
Front-to-Back Ratio	≥ 20 dB
Impedance	50 ohm
Maximum Power	50 W
Connector Position	Back / exposed RG58 cable 920±10 mm
Radome Material	ABS
Radome Color	White
Weight	Antenna 1.05 kg; bracket 0.5 kg
Operating Temperature	-40°C to +60°C
Rated Wind Velocity	55 m/s
Bracket	JM-VB17
Mast / Wall Hardware	Support pole dia. 30-50 mm / wall hole 57 x 57 mm @ M6 x 60 mm expansion bolts
Category	MIMO Antenna

GLVH2471G10BKRY product overview

The GLVH2471G10BKRY is a four-port, dual-polarization flat antenna covering 2400-2500 MHz, 5150-6000 MHz and 6000-7125 MHz. The supplied datasheet lists peak gain of 9.5, 11 and 12 dBi across the three bands, vertical and horizontal polarization, and four N-male connectors.

Applications and product fit

The documented band coverage and IEEE 802.11a/b/g/n/ac/ax/be MIMO support make this antenna a candidate for three-band WiFi 7 systems operating inside the listed frequency ranges. Band-specific horizontal 3 dB beamwidth is 60°, 55° and 45°; vertical 3 dB beamwidth is 55°, 50° and 40°.

Integration and ordering notes

Before ordering, confirm all three operating bands, four mating N-female feeder connections, available clearance for the 261 x 261 x 30 mm radome, and either mast or wall installation. The supplied JM-VB17 bracket supports a 30-50 mm pole; the four exposed RG58 cable sections are documented as 920±10 mm.

Frequently asked questions

Which WiFi bands does GLVH2471G10BKRY cover?

The datasheet lists 2400-2500 MHz, 5150-6000 MHz and 6000-7125 MHz.

How many RF connections are provided?

The antenna has four N-male connectors on exposed RG58 cable sections documented as 920±10 mm.

What gain and polarization are documented?

Peak gain is listed as 9.5, 11 and 12 dBi by band, with vertical and horizontal polarization.

What mounting options are listed?

The supplied specification lists mast and wall mounting with a JM-VB17 bracket and 30-50 mm supported pole diameter.

Selection and Project Support

GLVH2471G10BKRY 2.4/5/6 GHz WiFi 7 Flat Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the MIMO Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLVH2471G10BKRY).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
