GLQ6060F05X4DP 600-6000 MHz 4x4 MIMO pole-mount omnidirectional antenna

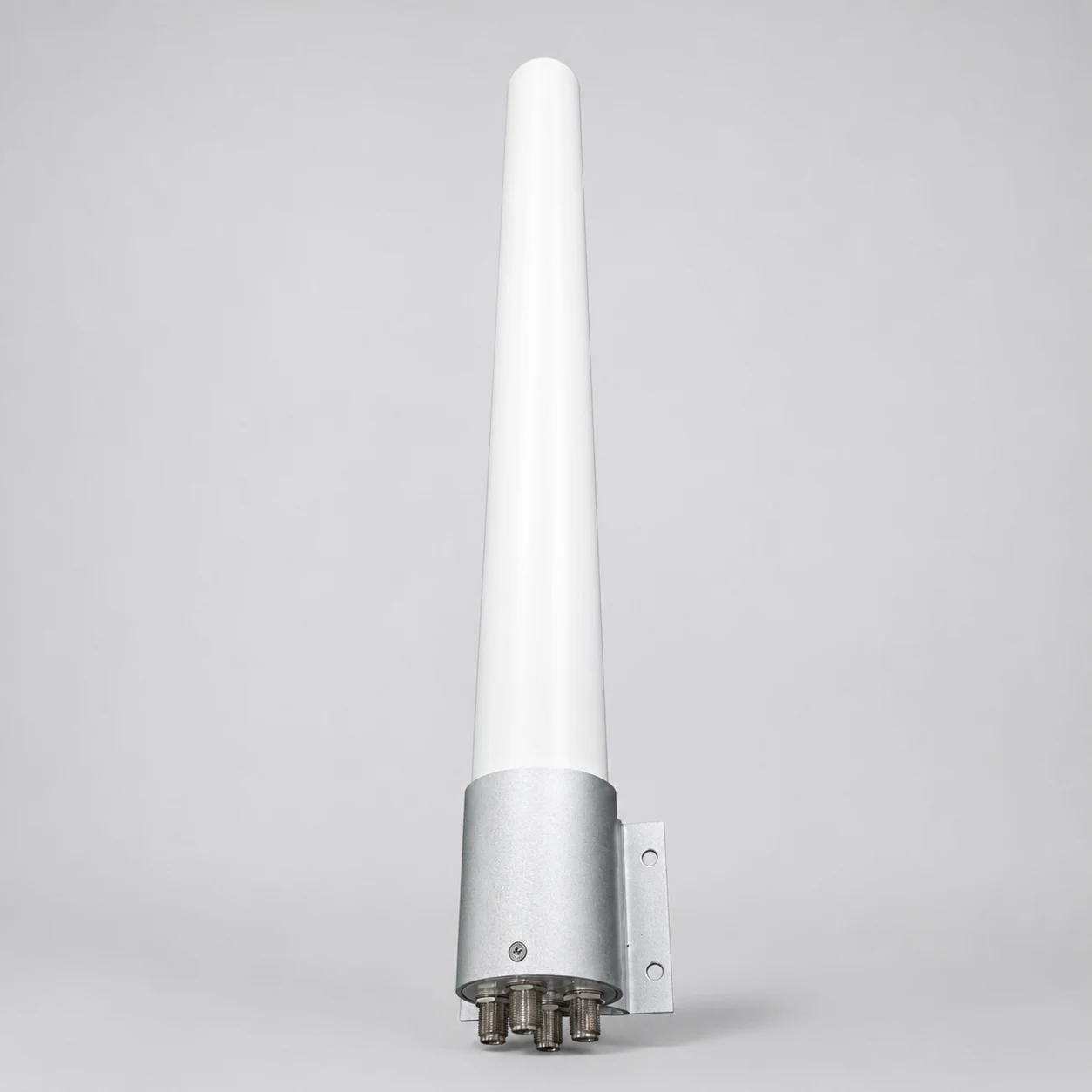

GLQ6060F05X4DP full antenna with pole-mount bracket and four RF ports

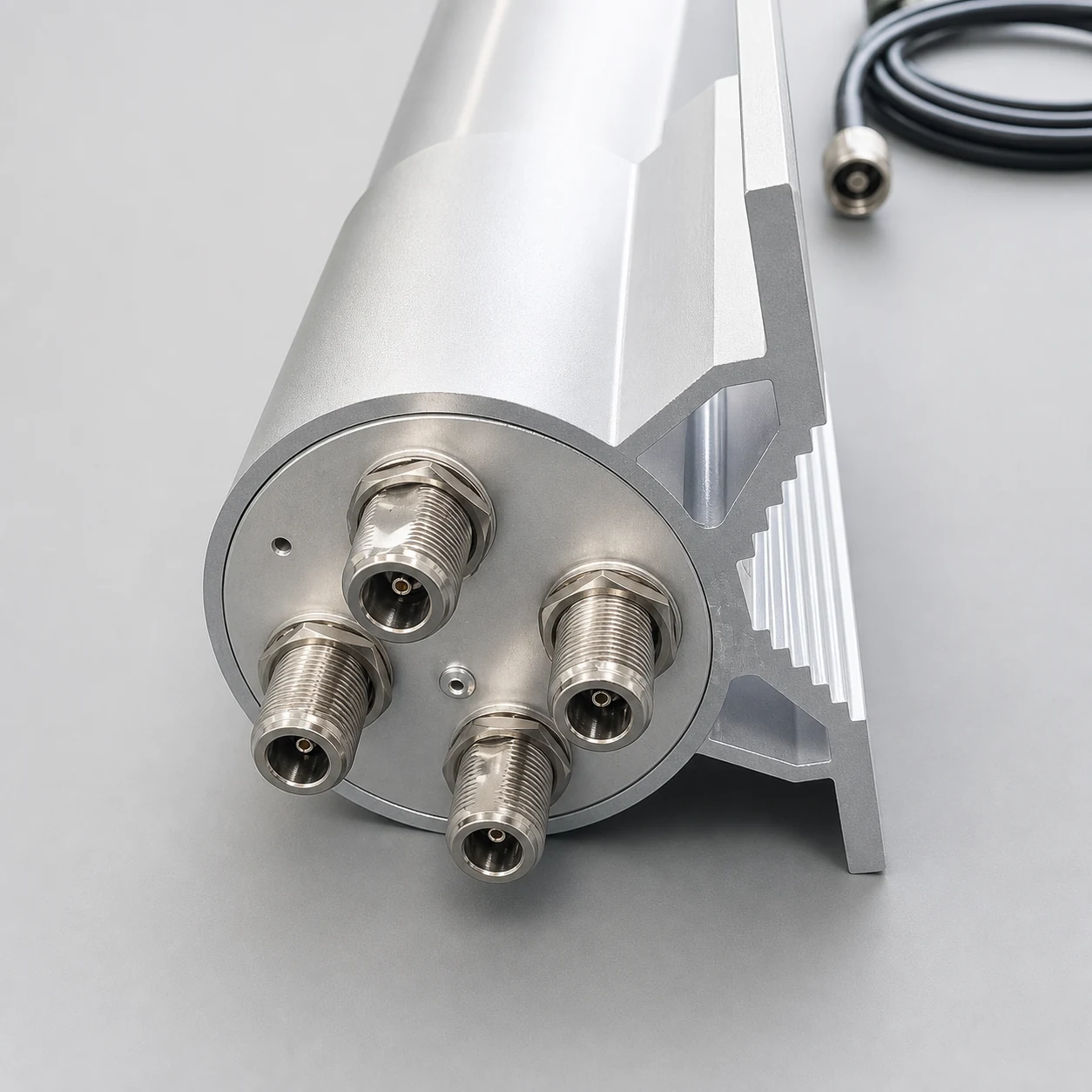

Close-up of four N-female ports on GLQ6060F05X4DP 4x4 MIMO antenna

RF Product · MIMO Antenna

GLQ6060F05X4DP 600-6000 MHz 4×4 MIMO Omnidirectional Antenna

SKUGLQ6060F05X4DP

Wideband 4×4 MIMO omnidirectional antenna covering 600-960 MHz and 1710-6000 MHz, with four N-female ports and pole mounting.

600-960 / 1710-6000 MHz x4Dia. 75 x 850 mm4 × N Female

Request a Quote Download Datasheet

Need a different connector, cable configuration or frequency? Send the SKU and project requirements.

Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029

MOQ10 pieces

SamplesFree sample available

Standard lead time7 days

CustomizationConnector and frequency

ProductionMass production

Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

SKUGLQ6060F05X4DP

Frequency600-960 / 1710-6000 MHz x4

DimensionsDia. 75 x 850 mm

Connector4 × N Female

MountingPole Mount

ApplicationWideband 4x4 MIMO cellular systems

Gain5 dBi x4

Horizontal Beamwidth360°

Vertical Beamwidth21°

VSWR≤4.5 at 600-960 MHz; ≤1.8 at 1710-6000 MHz

Radiation PatternOmnidirectional

PolarizationVertical and horizontal

Lightning ProtectionDC grounded

Maximum Input Power100 W

Impedance50 ohm

Radome MaterialPVC

Installation Pole Diameter30-50 mm

Weight2.5 kg

Operating Temperature-40°C to +80°C

Rated Wind Velocity60 m/s

RoHS CompliantYes

CategoryMIMO Antenna

Verified product record

Product details

Available fields are grouped by engineering purpose without filling unsupported values.

RF performance

Frequency600-960 / 1710-6000 MHz x4

Gain5 dBi x4

Horizontal Beamwidth360°

Vertical Beamwidth21°

VSWR≤4.5 at 600-960 MHz; ≤1.8 at 1710-6000 MHz

PolarizationVertical and horizontal

Maximum Input Power100 W

Impedance50 ohm

Interface and size

DimensionsDia. 75 x 850 mm

Connector4 × N Female

MountingPole Mount

Radome MaterialPVC

Weight2.5 kg

Operating conditions

Operating Temperature-40°C to +80°C

Rated Wind Velocity60 m/s

Downloads

Files shown here are linked to this exact product record.

PDFProduct datasheetTechnical information for this model

Documented use cases

Applications

Application labels below are stored on this product.

Wideband 4x4 MIMO cellular systems
