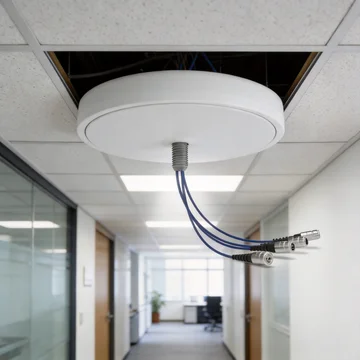

GL-DY7040V4-3 omni ceiling mount antenna application scene 1

GL-DY7040V4-3 omni ceiling mount antenna application scene 2

GL-DY7040V4-3 omni ceiling mount antenna connector and mounting detail view

RF Product Omni Ceiling Mount Antenna

GL-DY7040V4-3 698-4000MHz 4×N-K Omni Ceiling Mount Antenna

Name: GL-DY7040V4-3 698-4000MHz 4×N-K Omni Ceiling Mount Antenna
Brand: Rftech
SKU: GL-DY7040V4-3

SKU GL-DY7040V4-3

GL-DY7040V4-3 is an omni ceiling mount antenna for Indoor distributed antenna system. Its RF data lists 698-960 / 1710-2700 / 3400-4000 MHz operation, horizontal polarization, and VSWR ≤2.0 ≤2.0 ≤2.0. Mechanical selection should confirm 4×N-K connector, Φ350×40 dimensions against the installation plan. Design details include light weight, small size, wide bandwidth; anti-ultraviolet abs radome., giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY7040V4-3

Frequency 698-960 / 1710-2700 / 3400-4000

Dimensions Φ350×40

polarization Horizontal

vswr ≤2.0 ≤2.0 ≤2.0

impedance 50

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY7040V4-3
Frequency	698-960 / 1710-2700 / 3400-4000
Dimensions	Φ350×40
polarization	Horizontal
vswr	≤2.0 ≤2.0 ≤2.0
impedance	50
connector	4×N-K
temperature	-40°C to +65 °C
Category	Omni Ceiling Mount Antenna

Product Overview

Key Features

Light weight, small size, wide bandwidth
Anti-ultraviolet ABS radome.
Multi-input and Multi-output Technology

Technical Specifications

VSWR	≤2.0 ≤2.0 ≤2.0
Horizontal Beamwidth	360° 360° 360°
Vertical Beamwidth	65° 55° 50°
Polarization	Horizontal
Input Impedance	50
Maximum Input Power	50
Lightning Protection	DC Ground
Connector Type	4×N-K
Dimensions	Φ350×40
Weight	1.2
Radiating Element Material	PCB
Radome Material	ABS
Radome Color	White
Operating Temperature	-40°C to +65 °C

Application Scenarios

GL-DY7040V4-3 is suitable for Indoor distributed antenna system. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY7040V4-3 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY7040V4-3 698-4000MHz 4×N-K Omni Ceiling Mount Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Omni Ceiling Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY7040V4-3).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
