Frequency617-698 698-960 1710-2700 3400-3800 4900-7125
gain1.8 2.0 3 4 4.5
polarizationVertical
vswr≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8
impedance50
RF Product · Omni Ceiling Mount Antenna

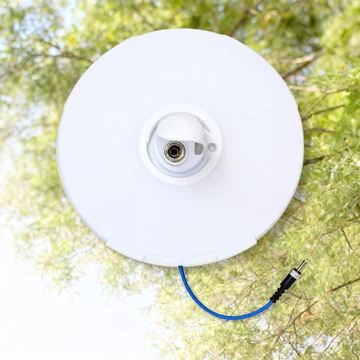

617-7125MHz N female Omni Ceiling Mount Antenna GL-DY7060V3
SKUGL-DY7060V3

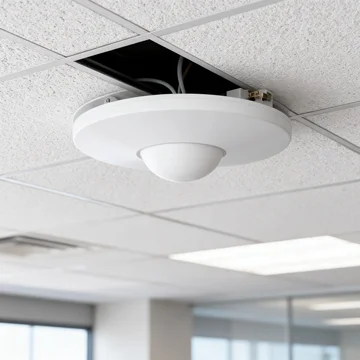

GL-DY7060V3 is an omni ceiling mount antenna for Indoor distributed antenna system. Its RF data lists 617-698 698-960 1710-2700 3400-3800 4900-7125 MHz operation, 1.8 2.0 3 4 4.5 dBi gain, vertical polarization, and VSWR ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8. Mechanical selection should confirm N female connector, Ø225×150 dimensions against the installation plan. Design details include light weight, small size, wide bandwidth; anti-ultraviolet abs radome., giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.
617-698 698-960 1710-2700 3400-3800 4900-7125Ø225×1501.8 2.0 3 4 4.5
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY7060V3
Frequency617-698 698-960 1710-2700 3400-3800 4900-7125
DimensionsØ225×150
gain1.8 2.0 3 4 4.5
polarizationVertical
vswr≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8
impedance50
connectorN female
temperature-40°C to +65 °C
CategoryOmni Ceiling Mount Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.DimensionsØ225×150
connectorN female
temperature-40°C to +65 °C
SKUGL-DY7060V3
CategoryOmni Ceiling Mount Antenna
Current documentation
Downloads
Files shown here are linked to this exact product record.Documented use cases
