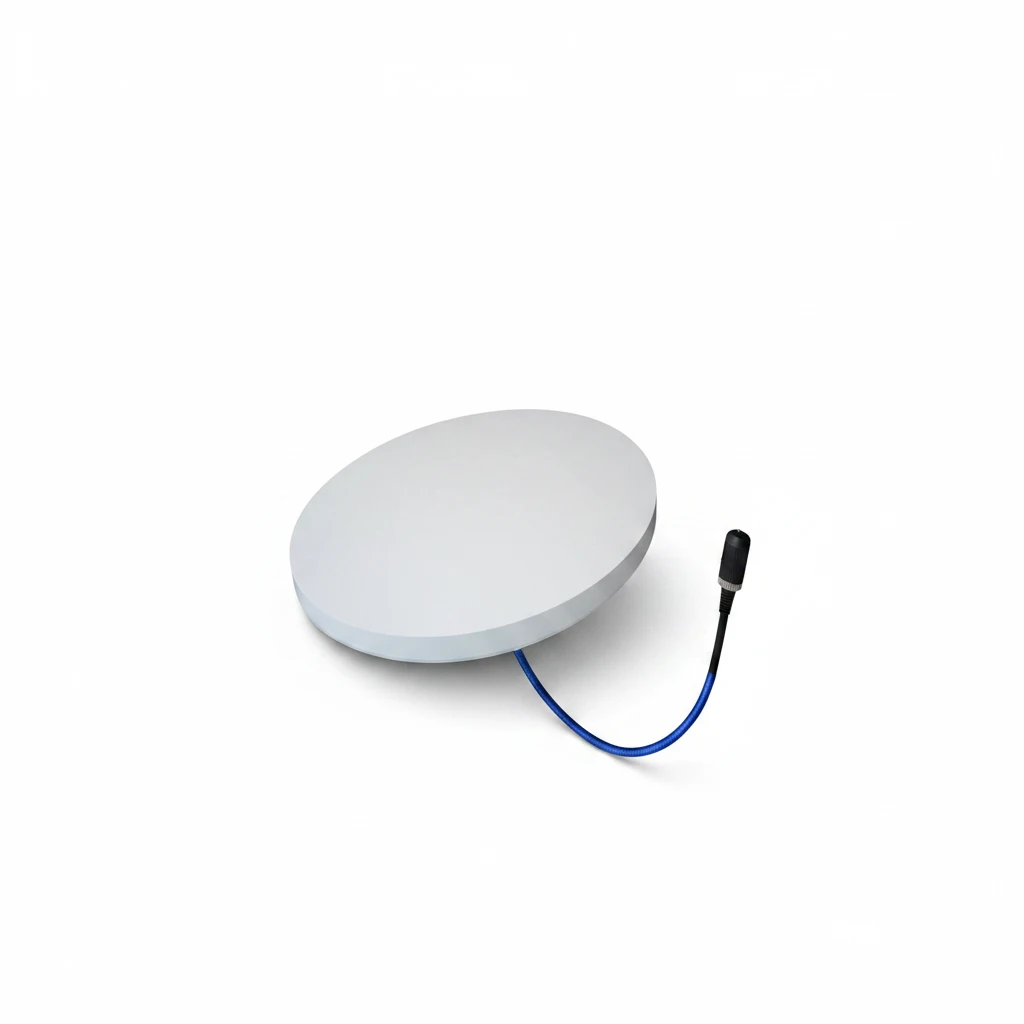

GL-DY7060H3 5-Band Omni Ceiling Mount Antenna, 617-7125 MHz

SKU GL-DY7060H3

GL-DY7060H3 is a omni ceiling mount antenna for indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings. Confirmed specifications include frequency 617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125, gain 2.0 / 3.5 / 4.5 / 6.0, connector Input connector type / N female. Use it for model-specific RF selection, sampling, and OEM integration when formal documents are handled separately.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL-DY7060H3

Frequency 617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125

Dimensions Dimensions- mm / Ø220×18

Connector Input connector type / N female

Application indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings

Gain 2.0 / 3.5 / 4.5 / 6.0

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY7060H3
Frequency	617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125
Dimensions	Dimensions- mm / Ø220×18
Connector	Input connector type / N female
Application	indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings
Gain	2.0 / 3.5 / 4.5 / 6.0
Polarization	Horizontal
Horizontal Beamwidth	360°
Vertical Beamwidth	65° / 55° / 50° / 45°
Nominal Impedance	50
Maximum Input Power	50
Weight	Antenna weight- kg / 0.3
Radome	Radome material / ABS
Material	Radiating Element Material / PCB
Color	White \| White \| White \| White \| White
Operating Temperature	Operating temperature / -40°C to +65 °C
Category	Omni Ceiling Mount Antenna

Product Overview

GL-DY7060H3 is a omni ceiling mount antenna prepared for indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings. The confirmed table includes Frequency Range: 617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125; Gain: 2.0 / 3.5 / 4.5 / 6.0; Polarization: Horizontal; VSWR: <=1.8; Nominal Impedance: 50.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

GL-DY7060H3 Omni Ceiling Mount Antenna for indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings
Operating band: 617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125
Gain: 2.0 / 3.5 / 4.5 / 6.0
Polarization: Horizontal
VSWR: <=1.8
Connector: Input connector type / N female

Technical Specifications

Frequency Range	617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125
Gain	2.0 / 3.5 / 4.5 / 6.0
Polarization	Horizontal
VSWR	<=1.8
Horizontal Beamwidth	360°
Vertical Beamwidth	65° / 55° / 50° / 45°
Nominal Impedance	50
Maximum Input Power	50
Connector Type	Input connector type / N female
Dimensions	Dimensions- mm / Ø220×18
Weight	Antenna weight- kg / 0.3
Radome	Radome material / ABS
Material	Radiating Element Material / PCB
Color	White \| White \| White \| White \| White
Operating Temperature	Operating temperature / -40°C to +65 °C

Mechanical and Installation Notes

Match the RF interface to Input connector type / N female. Reserve space for Dimensions- mm / Ø220×18. Review operating limits against Operating temperature / -40°C to +65 °C.

Applications and Industries

GL-DY7060H3 can be considered for indoor DAS coverage for offices, hotels, shopping malls, hospitals and transport buildings. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

Engineering file set: 1 supporting local document(s) used to prepare this listing
Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY7060H3, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY7060H3 support?

GL-DY7060H3 is listed with 617-960 / 1350-1550 / 1710-2700 / 3400-3800 / 4900-7125. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY7060H3?

Connector: Input connector type / N female. Confirm variants before ordering.

How is GL-DY7060H3 installed?

Confirm mounting method and mechanical clearance before release.

Can GL-DY7060H3 be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.

Selection and Project Support

GL-DY7060H3 5-Band Omni Ceiling Mount Antenna, 617-7125 MHz is listed by Rftech for RF antenna and wireless connectivity projects in the Omni Ceiling Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY7060H3).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
