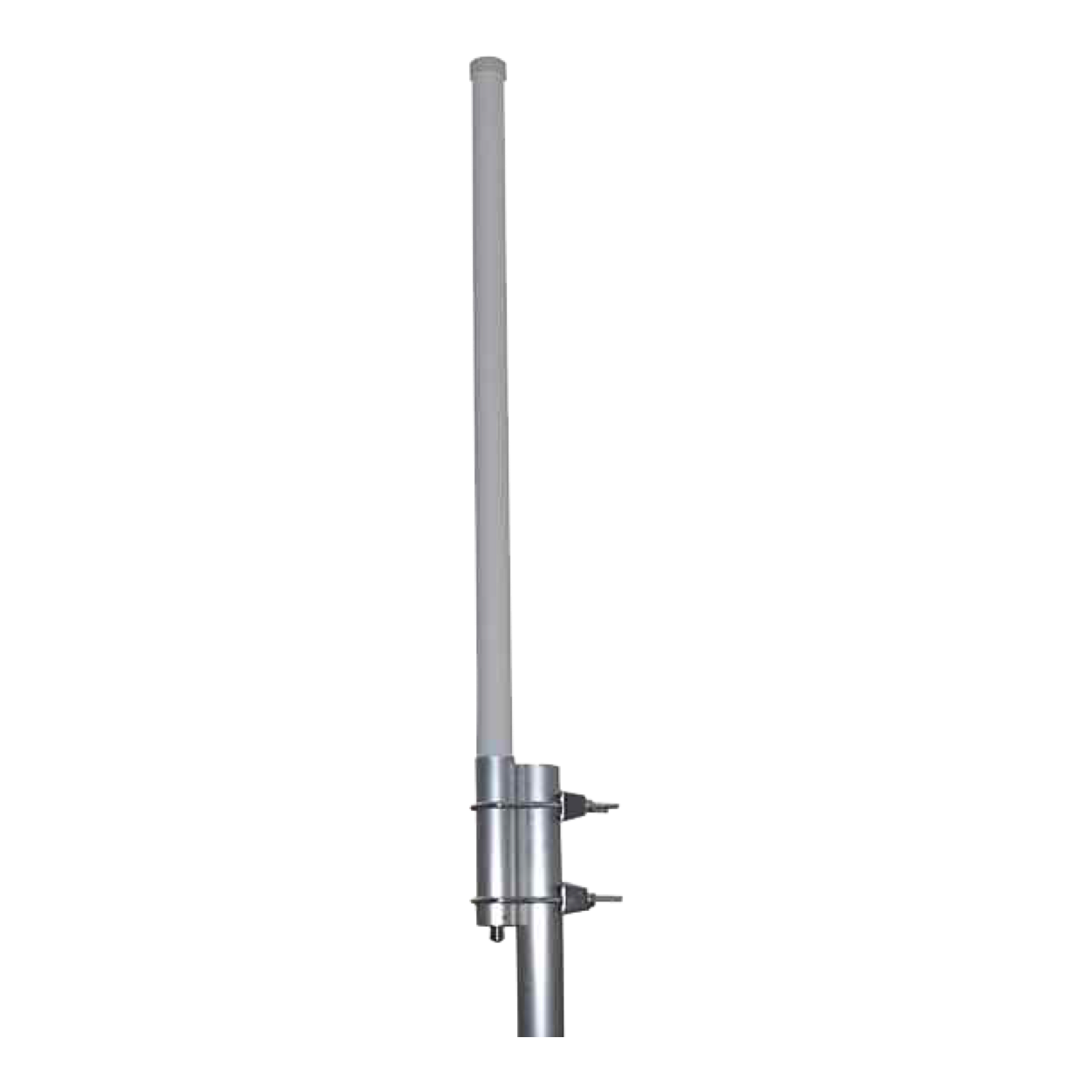

GL350AD5-A 350-366 MHz 5 dBi Fiberglass Omni Antenna
SKU GL350AD5-A
GL350AD5-A is a 350-366 MHz fiberglass omni antenna for focused UHF fixed-site requirements, with 5 dBi gain, N female feed and a 1.2 m vertical profile.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350AD5-A |
|---|---|
| Frequency | 350-366 MHz |
| Dimensions | 1.2 m |
| Connector | N Female |
| Mounting | Mast mount |
| Application | UHF fixed-site omnidirectional antenna |
| Bandwidth | 16 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 35 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 1.2 m |
| Weight | 1.4 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass |
| Category | Fiberglass Omni Antenna |
Narrower UHF assignment
GL350AD5-A is the narrower-band companion to GL350AD5, covering 350-366 MHz rather than the wider 330-370 MHz range. Its 5 dBi gain and vertical polarization are for installations where the operating allocation is known and a fiberglass omni radiator is required.
Physical specification
The source lists a 1.2 m length, 1.4 kg weight, 100 W maximum power and N female connector. With a 35° vertical beamwidth and ≤1.5 VSWR, the product should be installed upright on a suitably engineered mast and fed with 50 Ω cable appropriate for the chosen channel.
Deployment use
It suits UHF base stations, localized industrial radio coverage and system builds that need omnidirectional service in the 350-366 MHz interval. Confirm the support-pole diameter, grounding arrangement, cable loss and local wind exposure before finalizing the installation.
Selection question
Use GL350AD5-A when the narrower 16 MHz operating range is intentional. If the system must cover channels below 350 MHz, review a model whose published frequency range includes those channels.
Typical Applications
- UHF fixed-site omnidirectional antenna
- System integration with a specified 50 Ω feed line
- Projects that document frequency, connector and mounting details before ordering
Questions Before Ordering
How is GL350AD5-A different from GL350AD5?
GL350AD5-A is specified for 350-366 MHz and is 1.2 m long; GL350AD5 covers 330-370 MHz.
Is the connector fixed?
The source lists an N female connector; verify the mating cable connector during system design.
Related Resources
- Explore omnidirectional antennas
- Browse available antenna products
- Request a frequency-specific quotation
Technical Specifications
| Frequency Range | 350-366 MHz |
|---|---|
| Bandwidth | 16 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 35 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 1.2 m |
| Weight | 1.4 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | N female |
| Remarks | Fiberglass |
Selection and Project Support
GL350AD5-A 350-366 MHz 5 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350AD5-A).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
