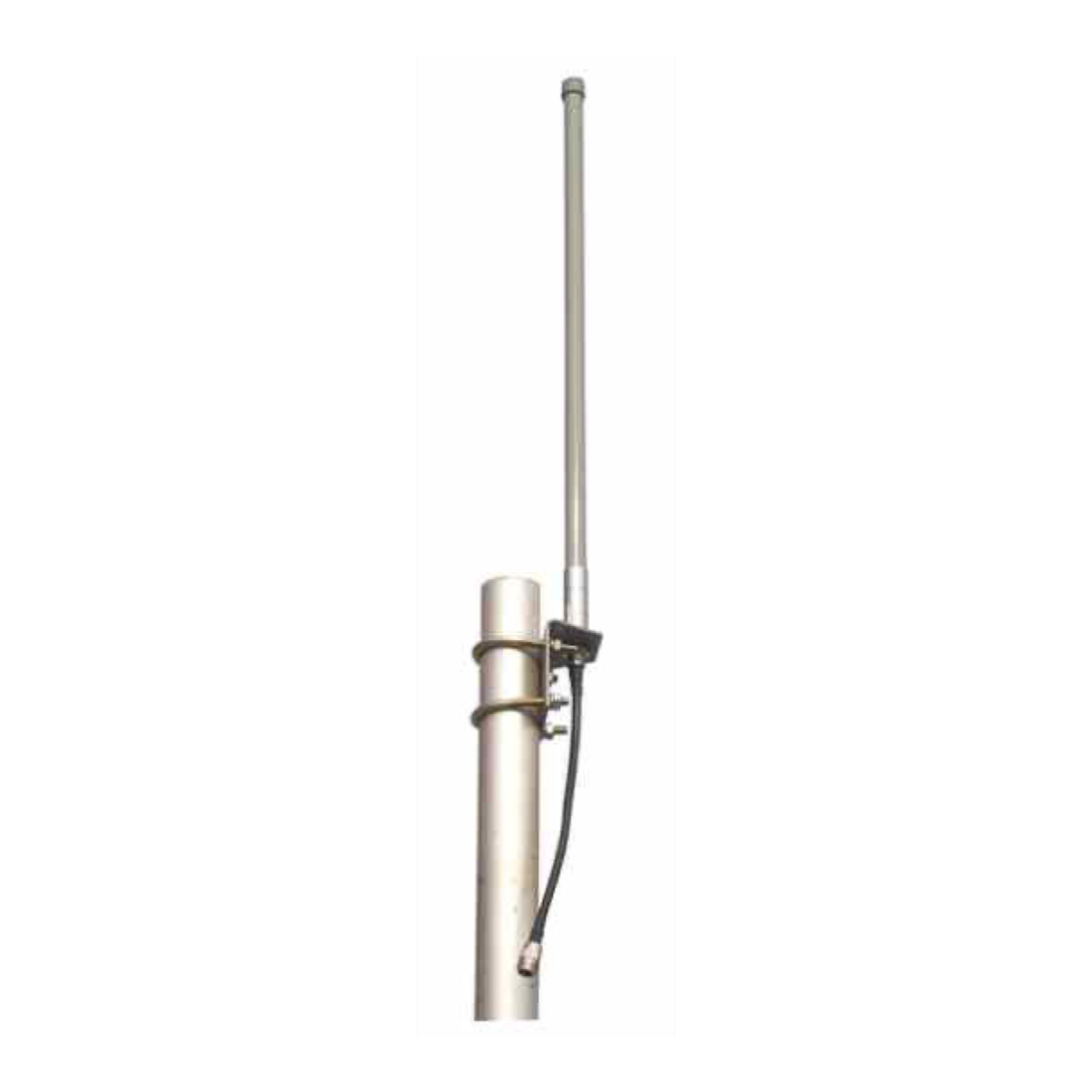

GL350AT06 300-390 MHz 3 dBi Fiberglass Omni Antenna
SKU GL350AT06
GL350AT06 is a short 0.6 m fiberglass omni antenna covering 300-390 MHz, designed for compact fixed UHF installations requiring 3 dBi gain and a defined SL16 female interface.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350AT06 |
|---|---|
| Frequency | 300-390 MHz |
| Dimensions | 0.6 m |
| Connector | SL16 female or customization |
| Mounting | Mast mount |
| Application | Compact UHF omnidirectional antenna |
| Bandwidth | 10 MHz |
| Gain | 3 dBi |
| Vertical Beamwidth | 50 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 0.6 m |
| Weight | 0.7 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass |
| Category | Fiberglass Omni Antenna |
Compact wide-band option
GL350AT06 covers 300-390 MHz in a 0.6 m fiberglass body, making it the compact fixed-site option among the longer UHF omni models in this batch. It is rated at 3 dBi gain and uses vertical polarization for broad coverage around the installation point.
Interface and power limits
The documented input rating is 100 W, with ≤1.5 VSWR and 50 Ω nominal impedance. SL16 female is the listed connector, with customization available. Confirm the requested connector before manufacture rather than assuming an adapter will meet the mechanical and RF requirements.
Deployment use
This model can serve compact mast, rooftop or equipment-enclosure installations where a 0.6 m antenna is preferred over a high-gain long radiator. The 60 m/s wind figure is a product specification; the pole, bracket, grounding and cable routing still require a project-level check.
Selection question
Choose GL350AT06 when the wide 300-390 MHz range matters more than high gain and the installation benefits from a short fiberglass antenna. Select a longer, higher-gain model when the coverage plan specifically requires a tighter vertical pattern.
Typical Applications
- Compact UHF omnidirectional antenna
- System integration with a specified 50 Ω feed line
- Projects that document frequency, connector and mounting details before ordering
Questions Before Ordering
Can the connector be customized?
Yes. The source lists SL16 female or customization; define the required interface before ordering.
Is this a high-gain model?
No. Its listed gain is 3 dBi, prioritizing a compact 0.6 m package over the gain of longer models.
Related Resources
Technical Specifications
| Frequency Range | 300-390 MHz |
|---|---|
| Bandwidth | 10 MHz |
| Gain | 3 dBi |
| Vertical Beamwidth | 50 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 0.6 m |
| Weight | 0.7 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | SL16 female or customization |
| Remarks | Fiberglass |
Selection and Project Support
GL350AT06 300-390 MHz 3 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350AT06).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
