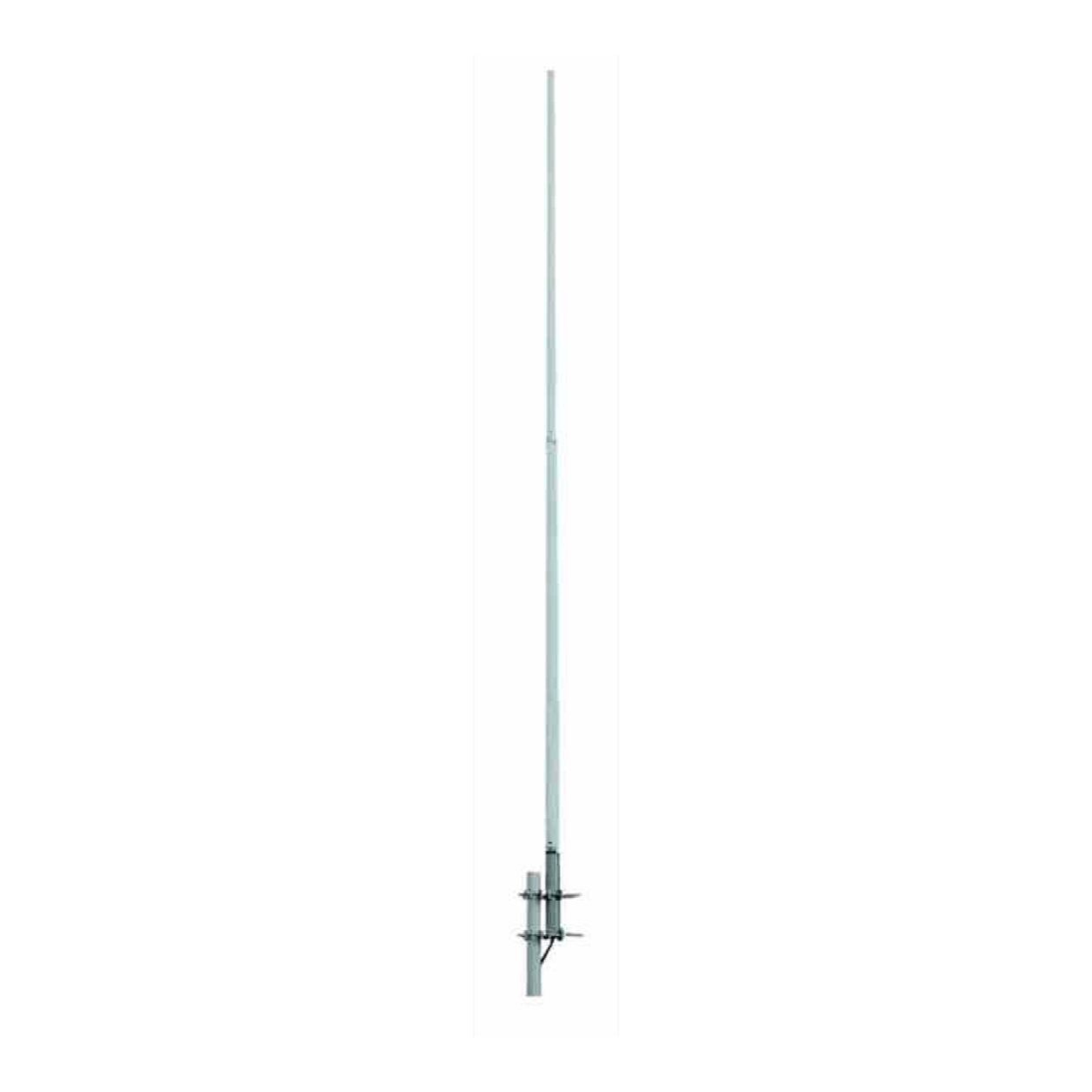

GL350C 300-390 MHz 10.2 dBi Fiberglass Omni Antenna

SKU GL350C

GL350C is a 4.7 m, 10.2 dBi fiberglass omni antenna for 300-390 MHz fixed UHF sites, supplied as a two-part construction with SL16 female or customized feed option.

SKU GL350C

Frequency 300-390 MHz

Dimensions 4.7 m

Connector SL16 female or customization

Mounting Mast mount

Application High-gain UHF fixed-site omnidirectional antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350C
Frequency	300-390 MHz
Dimensions	4.7 m
Connector	SL16 female or customization
Mounting	Mast mount
Application	High-gain UHF fixed-site omnidirectional antenna
Bandwidth	14 MHz
Gain	10.2 dBi
Vertical Beamwidth	10 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	4.7 m
Weight	4.5 kg
Rated Wind Velocity	60 m/s
Remarks	Fiberglass Separated into two parts
Category	Fiberglass Omni Antenna

Tall high-gain UHF radiator

GL350C is a 10.2 dBi fiberglass omni antenna for 300-390 MHz installations that can accommodate a 4.7 m radiator. Its 10° vertical beamwidth is much tighter than the lower-gain models, making antenna height and site geometry especially important to the final coverage result.

Two-part mechanical planning

The source states that the fiberglass construction is separated into two parts. It weighs 4.5 kg, is rated for 100 W input power and 60 m/s wind velocity, and uses an SL16 female or customized connector. Plan shipping, assembly, mast loading and cable support before installation.

Deployment use

Consider GL350C for established UHF base sites, remote infrastructure and coverage systems that need high gain across 300-390 MHz. The high-gain pattern should be evaluated against terrain, near-site users and the desired service elevation before selecting it.

Selection question

Choose GL350C when the site can support the two-part 4.7 m construction and the coverage plan benefits from 10.2 dBi gain. Specify any non-standard connector in the quotation request.

Typical Applications

High-gain UHF fixed-site omnidirectional antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

Is GL350C supplied in one piece?

No. The source notes that the fiberglass antenna is separated into two parts.

Why is site height important?

Its listed 10° vertical beamwidth makes mast height and terrain more influential than with a lower-gain omni model.

Related Resources

Technical Specifications

Frequency Range	300-390 MHz
Bandwidth	14 MHz
Gain	10.2 dBi
Vertical Beamwidth	10 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	4.7 m
Weight	4.5 kg
Rated Wind Velocity	60 m/s
Connector	SL16 female or customization
Remarks	Fiberglass Separated into two parts

Selection and Project Support

GL350C 300-390 MHz 10.2 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350C).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
