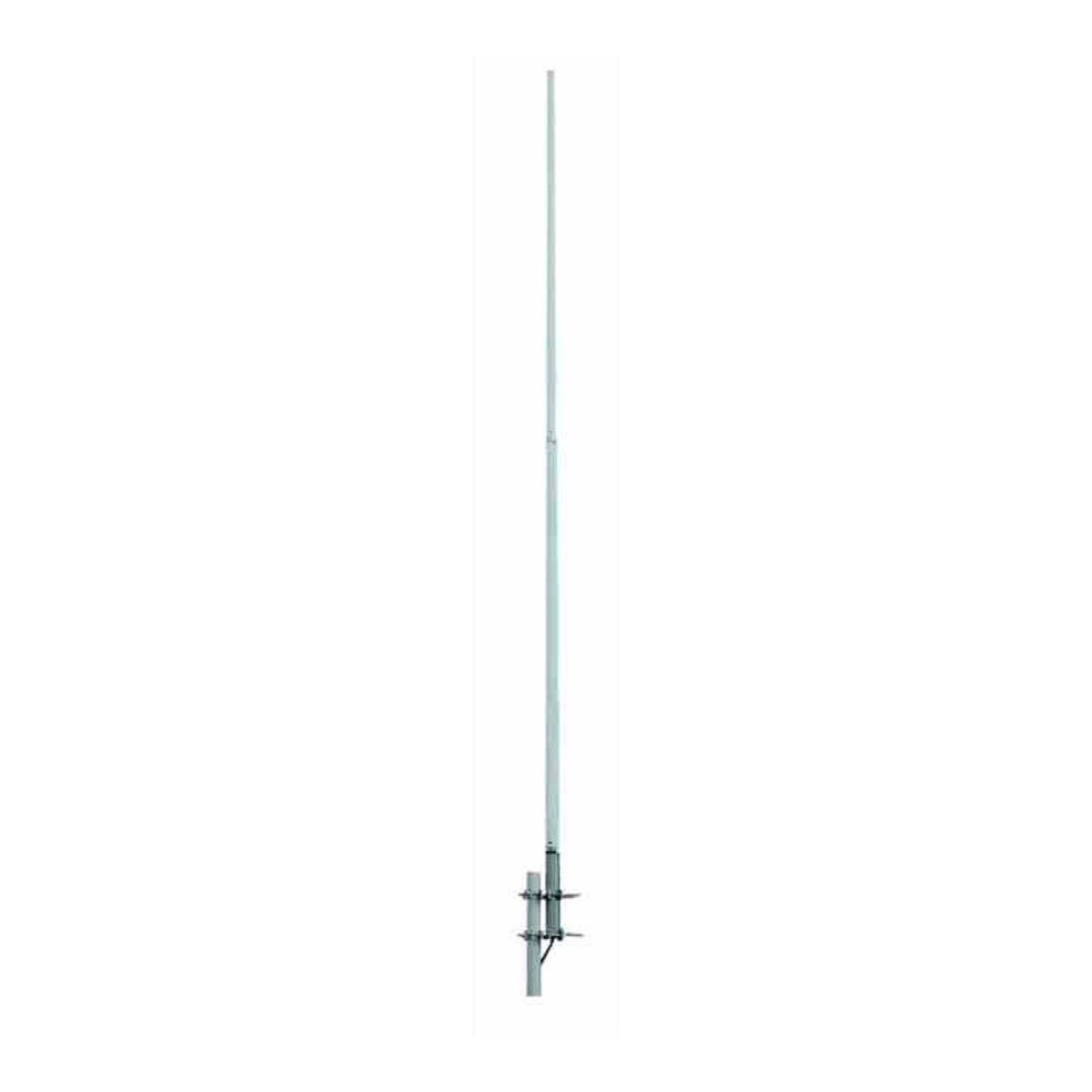

GL350C10P300 351-368 MHz 10.2 dBi Fiberglass Omni Antenna
SKU GL350C10P300
GL350C10P300 is a 351-368 MHz, 300 W fiberglass omni antenna with 10.2 dBi gain, 7/16 DIN female feed and a 5.2 m high-gain fixed-site profile.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350C10P300 |
|---|---|
| Frequency | 351-368 MHz |
| Dimensions | 5.2 m |
| Connector | 7 / 16DIN Female |
| Mounting | Mast mount |
| Application | High-power UHF fixed-site omnidirectional antenna |
| Bandwidth | 17 MHz |
| Gain | 10.2 dBi |
| Vertical Beamwidth | 10 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 300 W |
| Length | 5.2 m |
| Weight | 4.9 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass High Power |
| Category | Fiberglass Omni Antenna |
High-power narrow-band configuration
GL350C10P300 is the high-power model in this 20-product batch. It is specified for 351-368 MHz with a 300 W maximum input rating, 10.2 dBi gain and 7/16 DIN female connector, for a fixed UHF installation with a known frequency allocation.
Tall fiberglass structure
The documented length is 5.2 m and the weight is 4.9 kg. With a 10° vertical beamwidth and 60 m/s wind rating, the support pole, bracket, feeder and grounding scheme must be planned as a complete installation rather than as an accessory decision.
Deployment use
This antenna suits higher-power UHF base stations, infrastructure sites and engineered network deployments that need omnidirectional service over the specified 351-368 MHz band. Confirm the transmitter output, feeder loss, connector mating and site exposure before ordering.
Selection question
Select GL350C10P300 when the design requires 300 W handling, a 7/16 DIN female interface and a tall 10.2 dBi radiator. Do not use it outside the stated 351-368 MHz band without engineering confirmation.
Typical Applications
- High-power UHF fixed-site omnidirectional antenna
- System integration with a specified 50 Ω feed line
- Projects that document frequency, connector and mounting details before ordering
Questions Before Ordering
What is the maximum input power?
The source specifies 300 W maximum input power.
Which connector does this high-power model use?
GL350C10P300 is listed with a 7/16 DIN female connector.
Related Resources
Technical Specifications
| Frequency Range | 351-368 MHz |
|---|---|
| Bandwidth | 17 MHz |
| Gain | 10.2 dBi |
| Vertical Beamwidth | 10 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 300 W |
| Length | 5.2 m |
| Weight | 4.9 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | 7/16DIN Female |
| Remarks | Fiberglass High Power |
Selection and Project Support
GL350C10P300 351-368 MHz 10.2 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350C10P300).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
