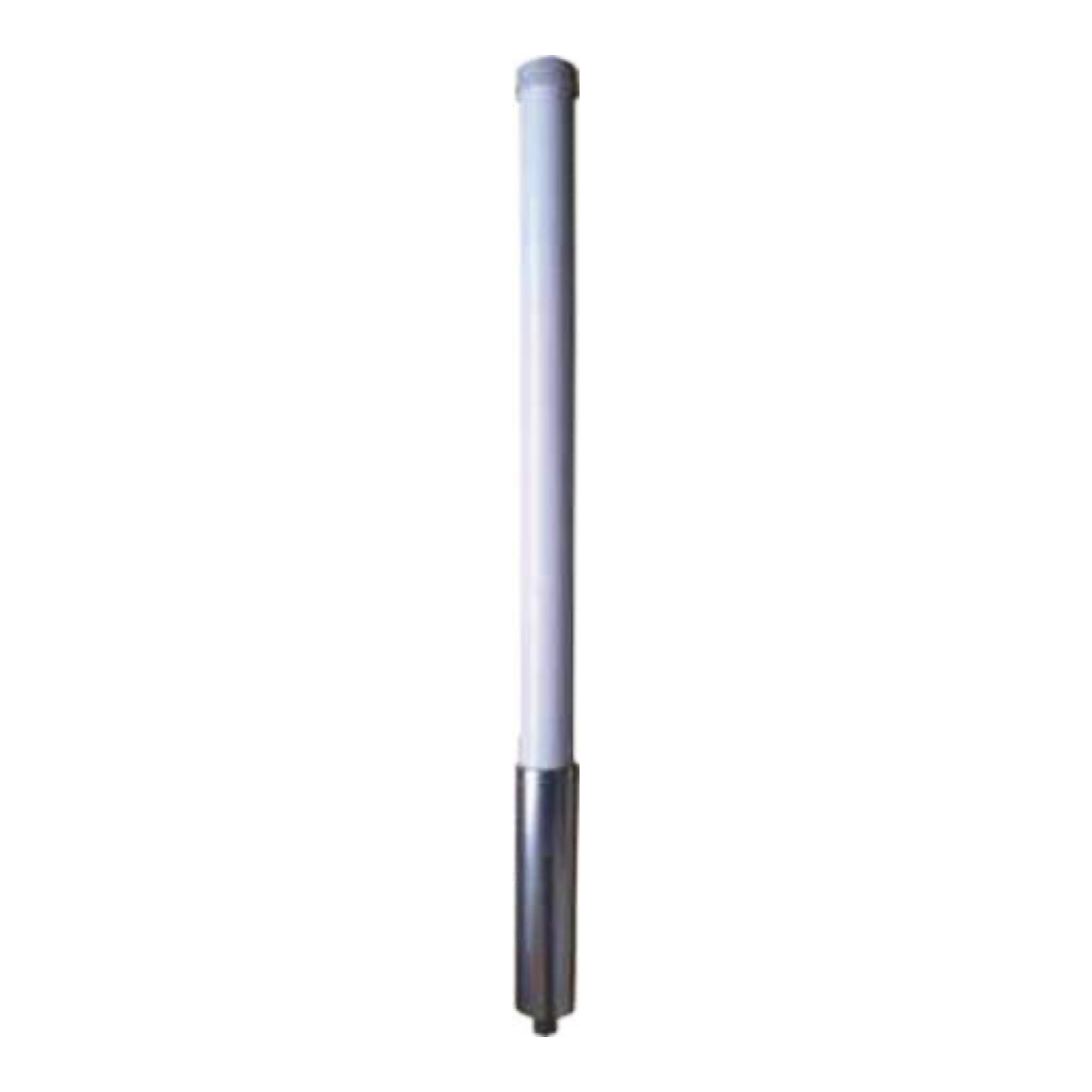

GL350G5P200 372-387 MHz 5 dBi Fiberglass Omni Antenna
SKU GL350G5P200
GL350G5P200 is a 372-387 MHz Fiberglass Omni Antenna for high-power uhf fixed-site omnidirectional antenna, with 5 dBi gain, N female connector and Mast mount.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350G5P200 |
|---|---|
| Frequency | 372-387 MHz |
| Dimensions | 1.2 m |
| Connector | N Female |
| Mounting | Mast mount |
| Application | High-power UHF fixed-site omnidirectional antenna |
| Bandwidth | 15 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 36 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 200 W |
| Length | 1.2 m |
| Weight | 0.6 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass High Power |
| Category | Fiberglass Omni Antenna |
Fiberglass Omni Antenna Role
GL350G5P200 is a 372-387 MHz Fiberglass Omni Antenna for fixed 372-387 MHz UHF coverage using a 200 W fiberglass omni antenna. Its source record lists 5 dBi gain, N female connector and Mast mount, so the product page is kept tied to those exact ordering details.
RF and Mechanical Fit
The antenna uses Vertical polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 200 W, and the published size is 1.2 m. Confirm cable loss, mating connector and mounting hardware before installation.
Installation Notes
Use GL350G5P200 where the narrower 15 MHz operating range, N female feed and 1.2 m fiberglass profile fit the base-site plan. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.
Application Fit
- High-power UHF fixed-site omnidirectional antenna
- Systems that operate inside 372-387 MHz and require a 50 Ω antenna path
- OEM or project builds where the SKU, connector and mounting details are stated before quotation
Selection Questions
What should be confirmed before ordering GL350G5P200?
Confirm the operating channels, requested connector, installation method and whether the documented 1.2 m size is acceptable for the equipment or support structure.
Can this model be swapped with a nearby SKU?
Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.
Related Resources
- Browse antenna products
- Compare omnidirectional and directional antenna choices
- Request a model-specific quotation
Source-Specific Note
The listed vertical beamwidth is 36 °. Source remark: Fiberglass High Power.
Technical Specifications
| Frequency Range | 372-387 MHz |
|---|---|
| Bandwidth | 15 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 36 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 200 W |
| Length | 1.2 m |
| Weight | 0.6 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | N female |
| Remarks | Fiberglass High Power |
Selection and Project Support
GL350G5P200 372-387 MHz 5 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350G5P200).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
