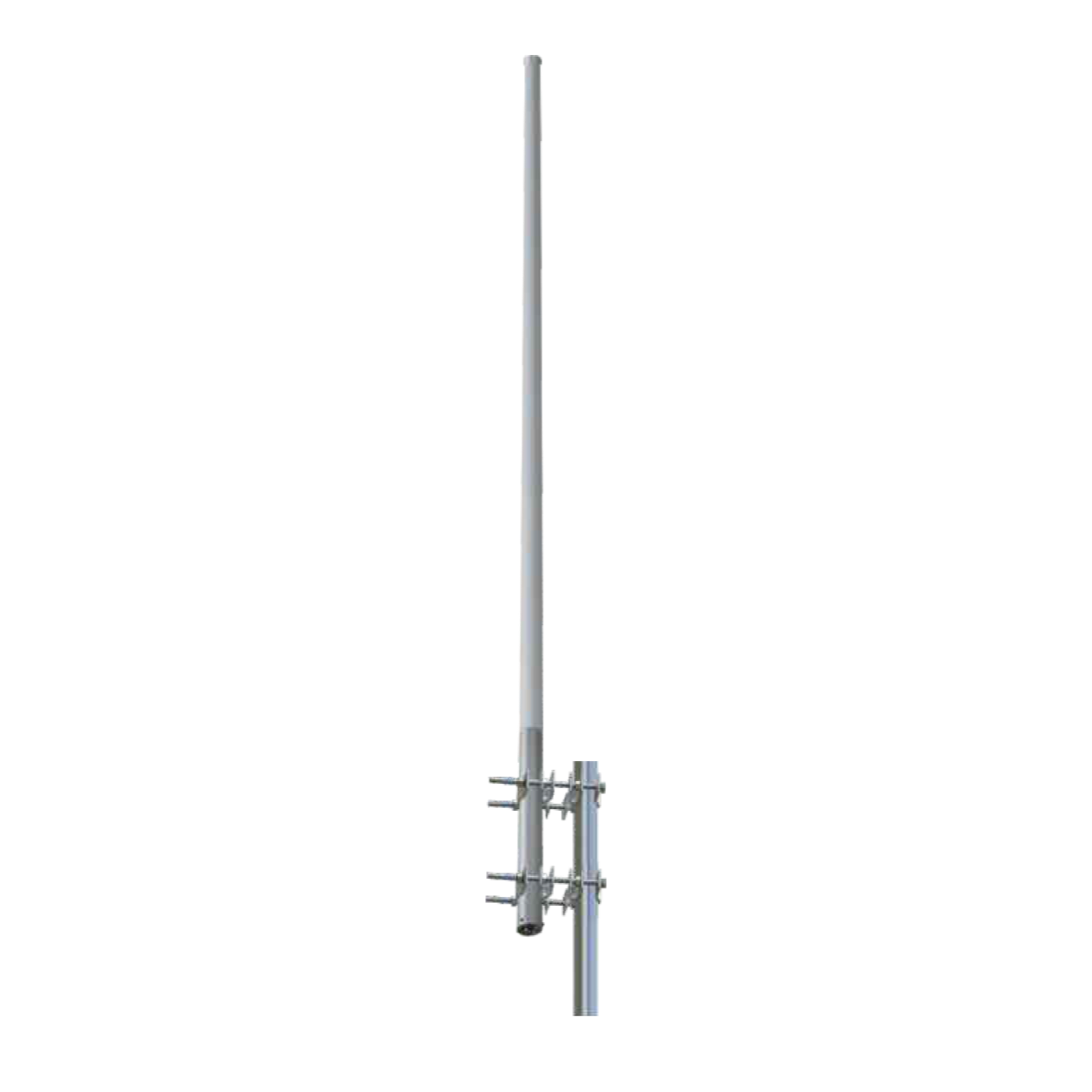

GL350Q8-M 350-375 / 372-400 MHz 8 dBi Fiberglass Omni Antenna
SKU GL350Q8-M
GL350Q8-M is a Fiberglass Omni Antenna for 350-375 / 372-400 MHz, with 8 dBi gain, 7/16DIN Female connection and 500 W power handling.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350Q8-M |
|---|---|
| Frequency | 350-375 / 372-400 MHz |
| Dimensions | 3.2 m |
| Connector | 7 / 16DIN Female |
| Mounting | Mast mount |
| Application | High-power outdoor coverage |
| Gain | 8 dBi |
| VSWR | ≤1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 500 W |
| Category | Fiberglass Omni Antenna |
Product Role
GL350Q8-M is a Fiberglass Omni Antenna for 350-375 / 372-400 MHz systems. The source record specifies 8 dBi gain, 7/16DIN Female connection and Mast mount installation.
Integration Notes
Confirm operating channels, connector mating, installation space and mounting hardware before ordering. Do not substitute a similar SKU without verifying its frequency range, gain, connector and mechanical envelope.
Application Fit
- High-power outdoor coverage
- 50 Ω radio systems operating in the documented frequency range
- OEM and project orders requiring this exact SKU
Related Resources
- Browse antenna products
- Compare omnidirectional and directional antenna choices
- Request a model-specific quotation
Technical Specifications
| Frequency Range | 350-375 / 372-400 MHz |
|---|---|
| Gain | 8 dBi |
| VSWR | ≤1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 500 W |
| Dimensions | 3.2 m |
| Connector | 7/16DIN Female |
| Mounting | Mast mount |
Selection and Project Support
GL350Q8-M 350-375 / 372-400 MHz 8 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350Q8-M).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
