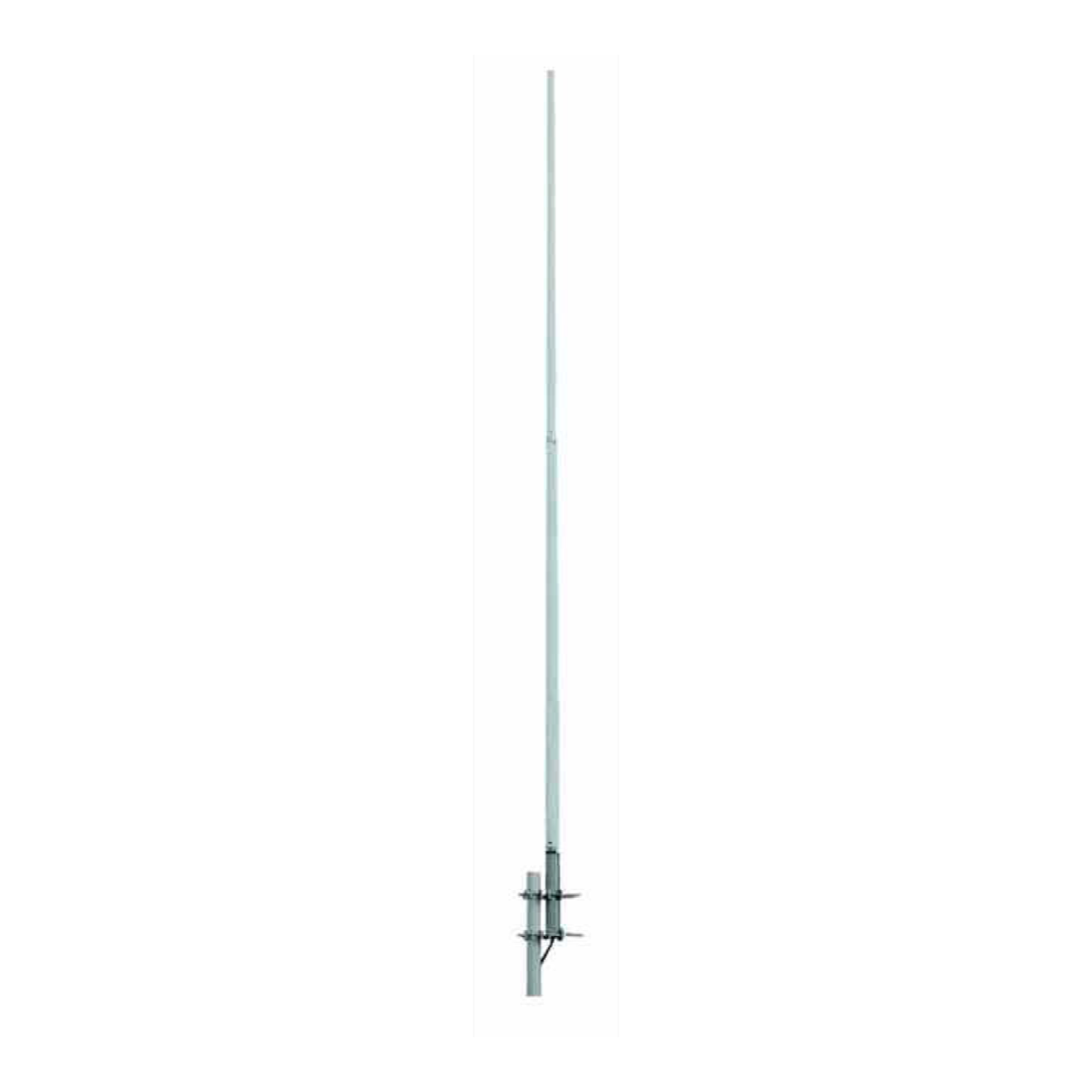

GL350UQ10-M white-background product image

GL350UQ10-M 350-400 MHz 10.2 dBi Fiberglass Omni Antenna

SKU GL350UQ10-M

GL350UQ10-M is a Fiberglass Omni Antenna for 350-400 MHz, with 10.2 dBi gain, 7/16DIN Female connection and 300 W power handling.

SKU GL350UQ10-M

Frequency 350-400 MHz

Dimensions 4.7 m

Connector 7 / 16DIN Female

Mounting Mast mount

Application High-power outdoor coverage

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350UQ10-M
Frequency	350-400 MHz
Dimensions	4.7 m
Connector	7 / 16DIN Female
Mounting	Mast mount
Application	High-power outdoor coverage
Gain	10.2 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	300 W
Category	Fiberglass Omni Antenna

Product Role

GL350UQ10-M is a Fiberglass Omni Antenna for 350-400 MHz systems. The source record specifies 10.2 dBi gain, 7/16DIN Female connection and Mast mount installation.

Integration Notes

Confirm operating channels, connector mating, installation space and mounting hardware before ordering. Do not substitute a similar SKU without verifying its frequency range, gain, connector and mechanical envelope.

Application Fit

High-power outdoor coverage
50 Ω radio systems operating in the documented frequency range
OEM and project orders requiring this exact SKU

Related Resources

Technical Specifications

Frequency Range	350-400 MHz
Gain	10.2 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	300 W
Dimensions	4.7 m
Connector	7/16DIN Female
Mounting	Mast mount

Selection and Project Support

GL350UQ10-M 350-400 MHz 10.2 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350UQ10-M).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
