RF Product · Fiberglass Omni Antenna

GL400E, GL400L7 and GL400W2 Fiberglass Omni Antennas

SKUGL400E

GL400E, GL400L7 and GL400W2 are vertically polarized fiberglass omni antennas. Each source lists 100 W maximum power, but their frequency specifications, gain and body lengths differ.

GL400E / GL400L7 / GL400W2MHz: 400-480; 450-490; 390-490N Female or Customization; UHF Male; N Female

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL400E	GL400L7	GL400W2
Frequency-MHz	400-480	450-490	390-490
Bandwidth-MHz	16	6	12
Gain-dBi	8.5	6.5	2.15
Vertical Beamwidth-º	14.5	25	62
VSWR	≤1.5	≤1.5	≤1.5
Nominal Impedance-Ω	50	50	50
Polarization	Vertical	Vertical	Vertical
Maximum Power-W	100	100	100
Length-m	2.5	1.8	0.5
Weight-kg	2.0	2.0	0.3
Rated Wind Velocity-m/s	60	60	60
Connector	N Female or Customization	UHF Male	N Female
Remarks	Fiberglass	Fiberglass Separated into two parts	Fiberglass

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Choose the fiberglass body length and connector

GL400E, GL400L7 and GL400W2 are vertically polarized fiberglass omni antennas. Each source lists 100 W maximum power, but their frequency specifications, gain and body lengths differ.

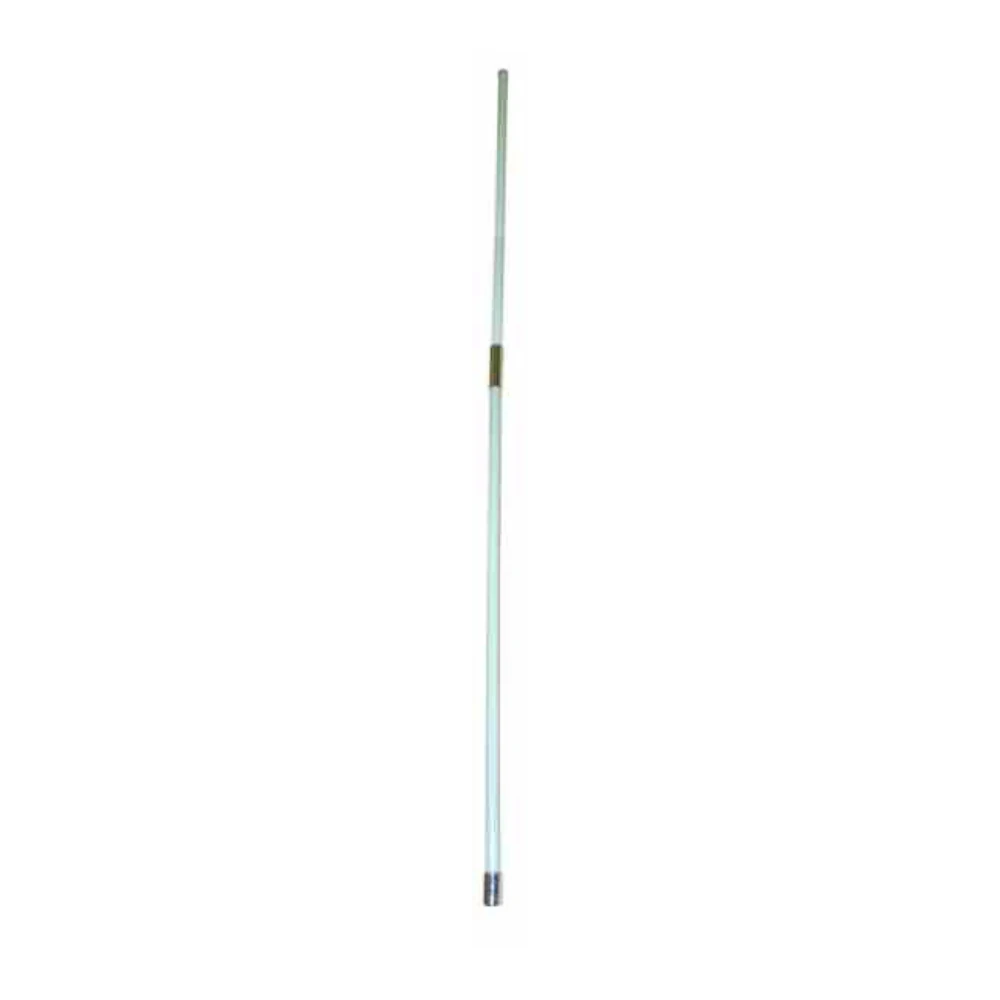

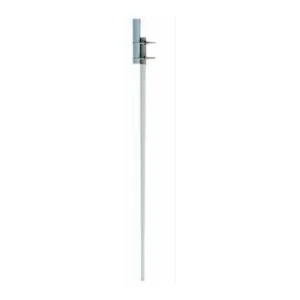

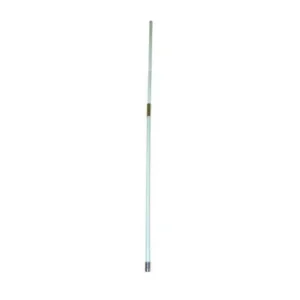

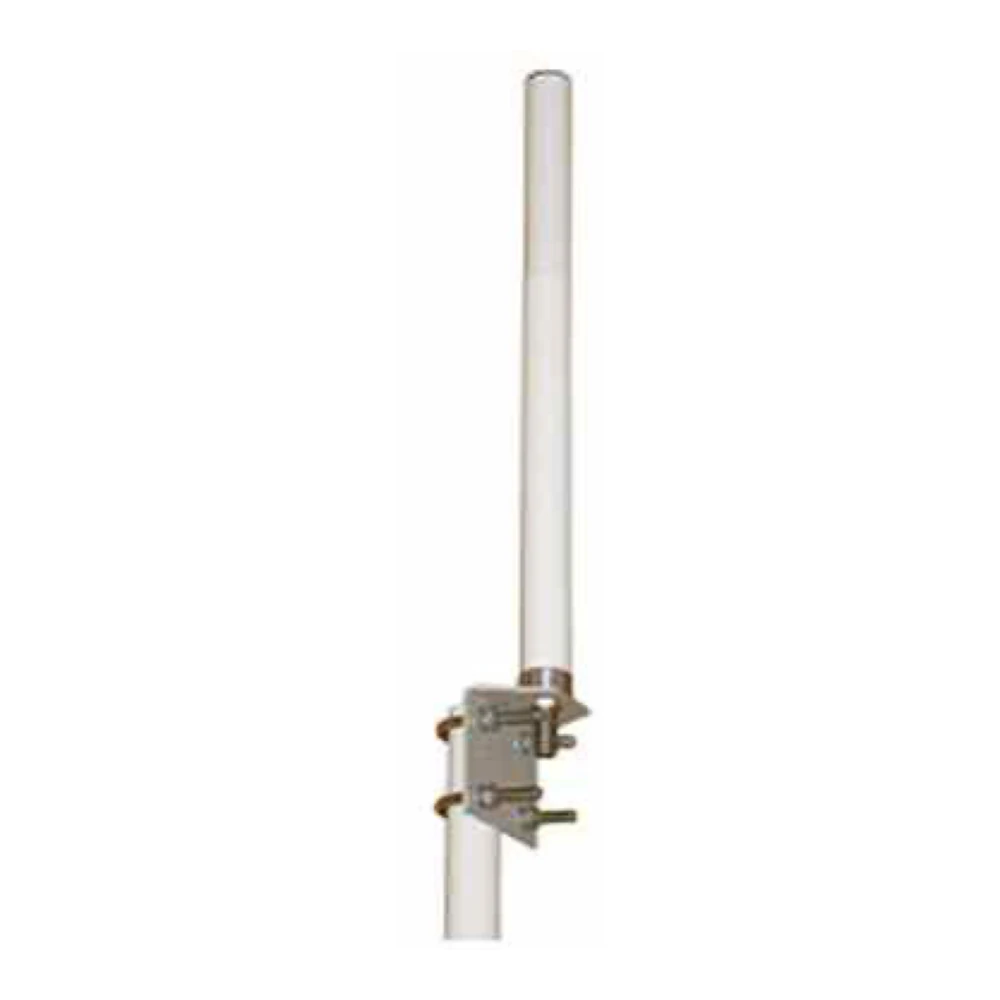

GL400E is 2.5 m long with 8.5 dBi gain; GL400L7 is 1.8 m long with 6.5 dBi gain and is described as separated into two parts. GL400W2 is the shorter 0.5 m model with 2.15 dBi gain.

GL400E and GL400W2 list N female connections, while GL400L7 uses UHF male. The comparison keeps each model's stated bandwidth separate from its frequency range.

Current documentation
