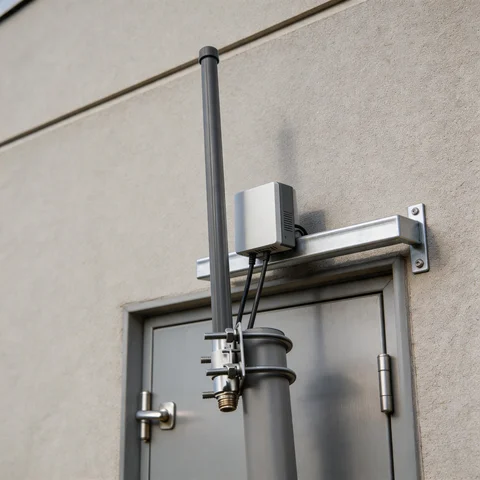

GL7027V6 fiberglass omni antenna application scene 1

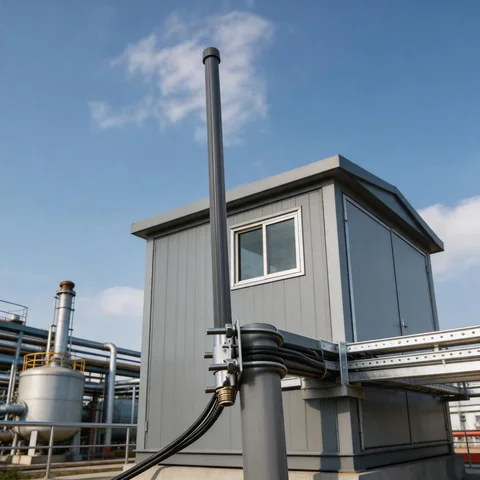

GL7027V6 fiberglass omni antenna application scene 2

GL7027V6 fiberglass omni antenna connector and mounting detail view

RF Product Fiberglass Omni Antenna

GL7027V6 698-2700MHz N female Fiberglass Omni Antenna

Name: GL7027V6 698-2700MHz N female Fiberglass Omni Antenna
Brand: Rftech
SKU: GL7027V6

SKU GL7027V6

GL7027V6 is a fiberglass omni antenna for 2G/3G/WLAN/LTE; Wireless System. Its RF data lists 698-960 1710-2700 MHz operation, vertical polarization, and VSWR ≤2.0 ≤2.0. Mechanical selection should confirm N female connector, Ф63×600 dimensions against the installation plan. Design details include broadband; public wireless hotspot, giving buyers useful context for deployment constraints instead of only matching a model number. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation. This keeps selection guidance practical for RF engineers, buyers and installation teams.

SKU GL7027V6

Frequency 698-960 1710-2700

Dimensions Ф63×600

polarization Vertical

vswr ≤2.0 ≤2.0

impedance 50

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL7027V6
Frequency	698-960 1710-2700
Dimensions	Ф63×600
polarization	Vertical
vswr	≤2.0 ≤2.0
impedance	50
connector	N female
Category	Fiberglass Omni Antenna

Product Overview

Key Features

Broadband
Public Wireless Hotspot

Technical Specifications

Frequency Range	698-960 1710-2700
VSWR	≤2.0 ≤2.0
Horizontal Beamwidth	360°
Polarization	Vertical
Input Impedance	50
Maximum Input Power	100
Lightning Protection	DC Ground
Connector Type	N female
Dimensions	Ф63×600
Weight	2
Radome Material	Fiberglass
Radome Color	White

Application Scenarios

GL7027V6 is suitable for 2G/3G/WLAN/LTE; Wireless System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL7027V6 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL7027V6 698-2700MHz N female Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL7027V6).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
