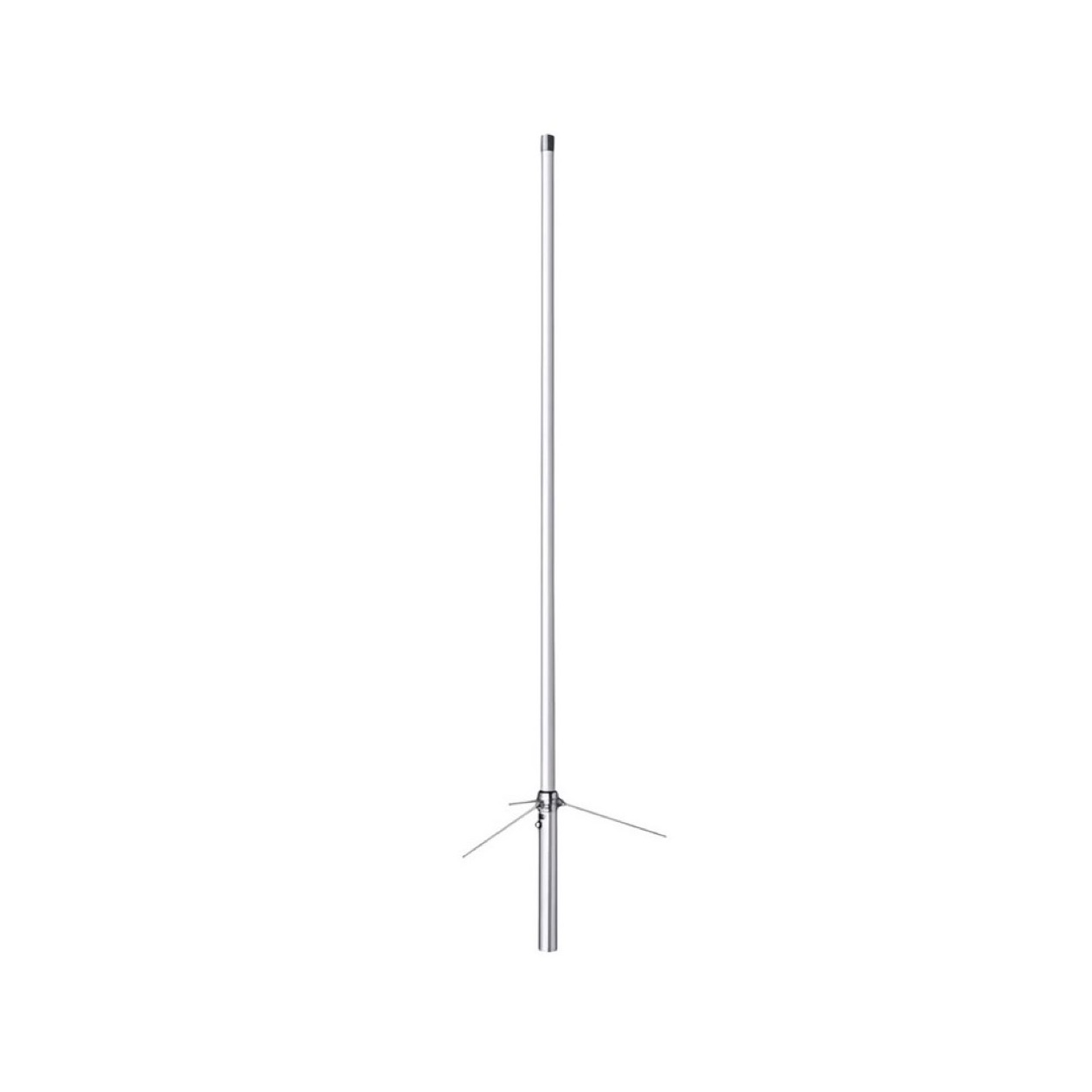

GLTDTB1700C one-section fiberglass base station antenna

GLTDTB1700C 134-174 MHz Base Station Antenna

SKU GLTDTB1700C

GLTDTB1700C one-section 134-174 MHz fiberglass base station antenna with 3.8 dBi gain, SO239 connector, 1700 mm length and 200 W rating.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GLTDTB1700C

Frequency 134-174 MHz

Dimensions Length 1700 mm

Connector SO239

Mounting Pole Mount

Application Base station antenna

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLTDTB1700C
Frequency	134-174 MHz
Dimensions	Length 1700 mm
Connector	SO239
Mounting	Pole Mount
Application	Base station antenna
Gain	3.8 dBi
VSWR	< 1.5
Maximum Power	200 W
Impedance	50 ohm
Radiation Pattern	Omnidirectional
Polarization	Vertical
Type	Base station antenna
Structure	1-section
Length	1700 mm
Material	Fiberglass + copper
Antenna Connector	SO239
Rated Wind Resistance	60 m/s
Applicable Support Pole Diameter	30-62 mm
Accessories	Radiating element x3; U-clamp x2; cutting drawing x1
Category	Fiberglass Omni Antenna

GLTDTB1700C product overview

GLTDTB1700C is a one-section fiberglass base station antenna covering 134-174 MHz. Its datasheet specifies 3.8 dBi gain, vertical polarization, 50 ohm impedance, omnidirectional radiation and VSWR below 1.5.

Product fit

The documented 1700 mm structure uses an SO239 connector and is rated for 200 W maximum power and 60 m/s wind resistance.

Integration and ordering notes

Before ordering, confirm the 134-174 MHz operating range, SO239 mating interface, 30-62 mm support-pole diameter, available 1700 mm clearance and the listed accessories.

Frequently asked questions

What frequency range does GLTDTB1700C cover?

The specified frequency range is 134-174 MHz.

What gain and VSWR are specified?

The datasheet specifies 3.8 dBi gain and VSWR below 1.5.

Which connector does it use?

The specified antenna connector is SO239.

What support-pole size is listed?

The applicable support-pole diameter is 30-62 mm.

Selection and Project Support

GLTDTB1700C 134-174 MHz Base Station Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLTDTB1700C).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
