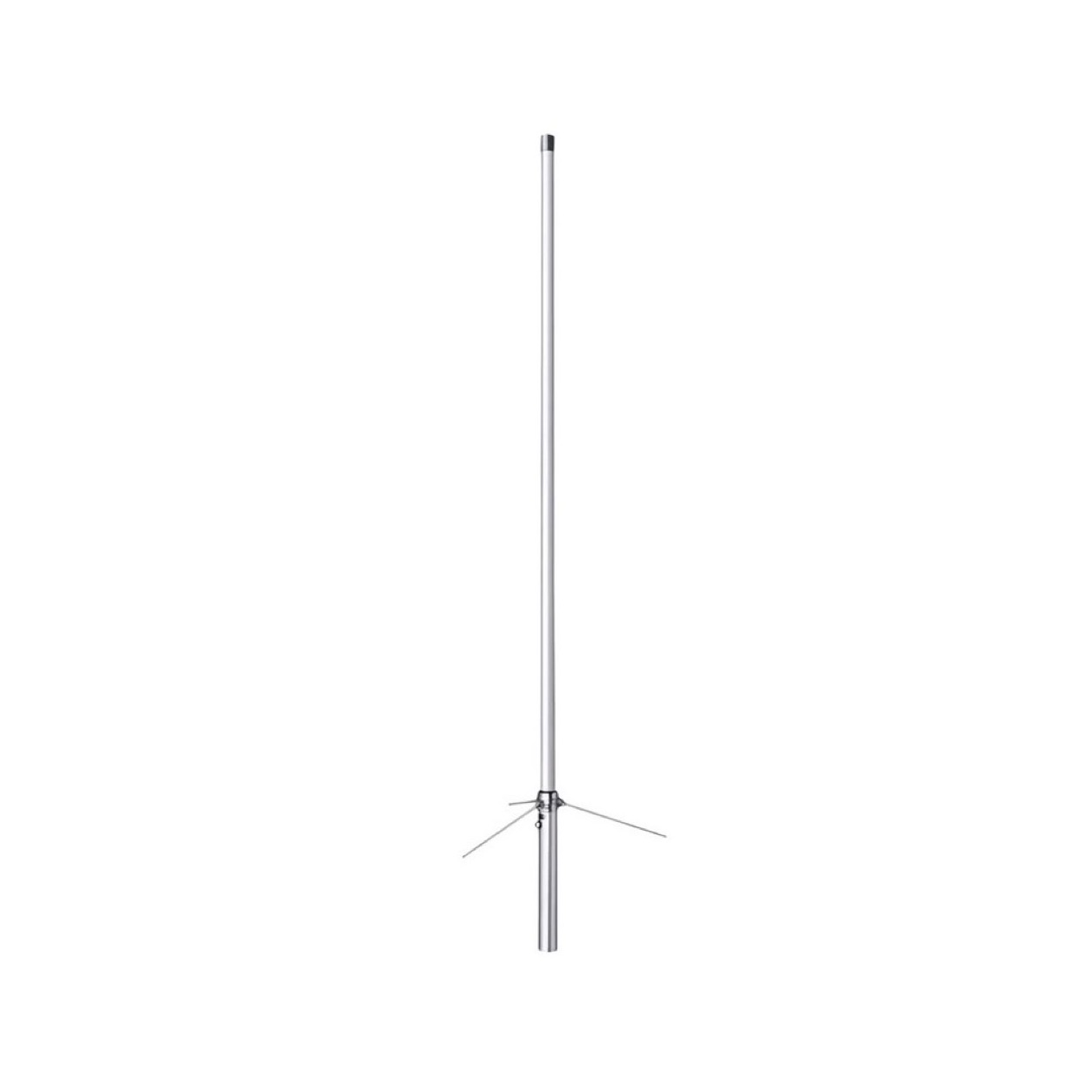

GLTDTB1700M 156-163 MHz Base Station Antenna
SKU GLTDTB1700M
GLTDTB1700M one-section 156-163 MHz fiberglass base station antenna with 3.8 dBi gain, SO239 connector, 1700 mm length and 200 W rating.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLTDTB1700M |
|---|---|
| Frequency | 156-163 MHz |
| Dimensions | Length 1700 mm |
| Connector | SO239 |
| Mounting | Pole Mount |
| Application | Base station antenna |
| Gain | 3.8 dBi |
| VSWR | < 1.5 |
| Maximum Power | 200 W |
| Impedance | 50 ohm |
| Radiation Pattern | Omnidirectional |
| Polarization | Vertical |
| Type | Base station antenna |
| Structure | 1-section |
| Length | 1700 mm |
| Material | Fiberglass + copper |
| Antenna Connector | SO239 |
| Rated Wind Resistance | 60 m/s |
| Applicable Support Pole Diameter | 30-62 mm |
| Accessories | Radiating element x3; U-clamp x2 |
| Category | Fiberglass Omni Antenna |
GLTDTB1700M product overview
GLTDTB1700M is a one-section fiberglass base station antenna covering 156-163 MHz. Its datasheet specifies 3.8 dBi gain, vertical polarization, 50 ohm impedance, omnidirectional radiation and VSWR below 1.5.
Product fit
The documented 1700 mm structure uses an SO239 connector and is rated for 200 W maximum power and 60 m/s wind resistance.
Integration and ordering notes
Before ordering, confirm the 156-163 MHz operating range, SO239 mating interface, 30-62 mm support-pole diameter, available 1700 mm clearance and the listed accessories.
Frequently asked questions
What frequency range does GLTDTB1700M cover?
The specified frequency range is 156-163 MHz.
What gain and VSWR are specified?
The datasheet specifies 3.8 dBi gain and VSWR below 1.5.
Which connector does it use?
The specified antenna connector is SO239.
What wind resistance is listed?
The rated wind resistance is 60 m/s.
