GLTQJ0160G3F38A 100-6000 MHz N Female Mast-Mount Antenna
SKU GLTQJ0160G3F38A
GLTQJ0160G3F38A 100-6000 MHz fiberglass omnidirectional antenna, 2 dBi, N female and mast bracket.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLTQJ0160G3F38A |
|---|---|
| Frequency | 100-6000 MHz |
| Dimensions | Ø43 × 730 mm |
| Connector | N Female |
| Mounting | Mast bracket |
| Application | Wideband wireless equipment |
| Gain | 2 dBi |
| VSWR | ≤ 3.0 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum power | 100 W |
| Category | Fiberglass Omni Antenna |
GLTQJ0160G3F38A product overview

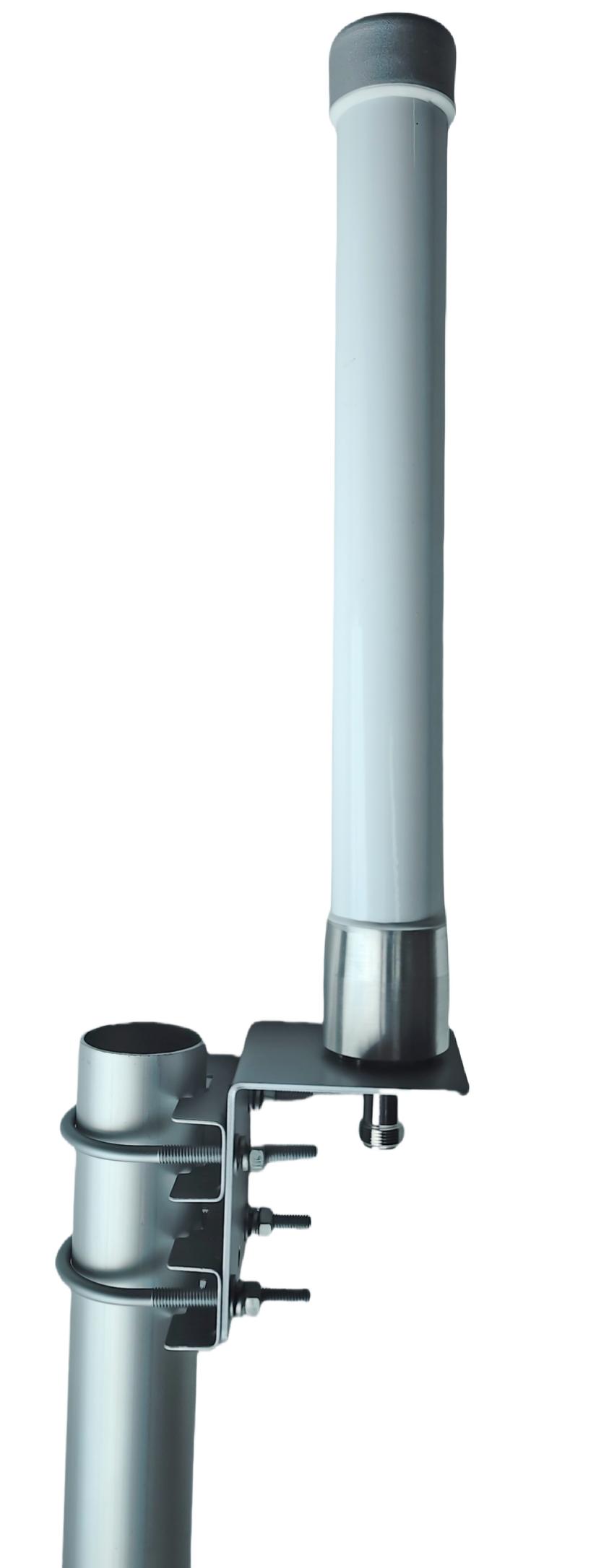

GLTQJ0160G3F38A is a 100-6000 MHz fiberglass omnidirectional antenna with N female connector and mast bracket.
Product fit
For mast-mounted wideband wireless installations.
Integration and ordering notes
Mast bracket is included in the source image. Confirm mast diameter and cable arrangement before ordering.
Frequently asked questions
What is the frequency range?
100-6000 MHz.
What is the maximum power?
100 W.
Which connector is used?
N female.
How is it mounted?
With a mast bracket.
Related products and resources
- Browse all Global RF Tech products
- Send your product and installation requirements
- Visit Global RF Tech
- Compare GLTQJ0160G3F26
- Compare GLTQJ0160G3F38
Selection and Project Support
GLTQJ0160G3F38A 100-6000 MHz N Female Mast-Mount Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLTQJ0160G3F38A).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
