Dual-band antenna selection
Two documented bands in a compact omni body
GL-2458V-8 is a dual-band fiberglass omnidirectional antenna covering 2400–2483 MHz and 5150–5850 MHz. It does not claim continuous operation across the gap between those ranges.
The original sheet lists 6/8 dBi gain across the two bands and vertical polarization. Its Ø23 × 273 mm ABS radome and 0.3 kg weight help define the mounting envelope.

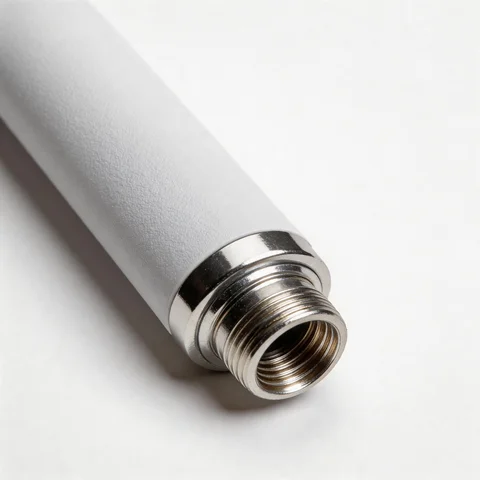

The connector is identified as N-K in the source, and the mounting hardware range is 35–60 mm. Confirm the mating connector and pole size with the exact supplied configuration before ordering.
