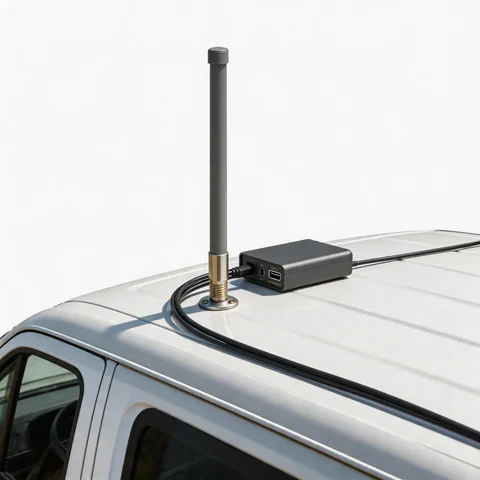

GL-500V-2 fiberglass omni antenna application scene 1

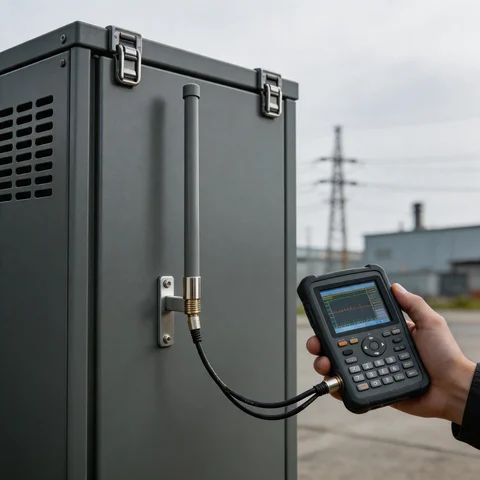

GL-500V-2 fiberglass omni antenna application scene 2

GL-500V-2 fiberglass omni antenna connector and mounting detail view

RF Product Fiberglass Omni Antenna

GL-500V-2 470-510MHz N male Fiberglass Omni Antenna

Name: GL-500V-2 470-510MHz N male Fiberglass Omni Antenna
Brand: Rftech
SKU: GL-500V-2.5

SKU GL-500V-2.5

GL-500V-2 is a fiberglass omni antenna for outdoor base stations, telemetry networks and wide-area RF coverage. Its RF data lists 470-510MHz MHz operation, vertical polarization, and VSWR ≤3.0. Mechanical selection should confirm N male connector, Ф20×295mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.

SKU GL-500V-2.5

Frequency 470-510MHz

Dimensions Ф20×295mm

polarization Vertical

vswr ≤3.0

connector N male

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-500V-2.5
Frequency	470-510MHz
Dimensions	Ф20×295mm
polarization	Vertical
vswr	≤3.0
connector	N male
temperature	-40°c～60°c
Category	Fiberglass Omni Antenna

Product Overview

Key Features

Technical Specifications

VSWR	≤3.0
Horizontal Beamwidth	360°
Vertical Beamwidth	30°
Polarization	Vertical
Maximum Input Power	50W
Lightning Protection	DC Ground
Connector Type	N male
Radome Material	fiberglass
Radome Color	Gray
Operating Temperature	-40°c～60°c

Application Scenarios

GL-500V-2 is suitable for outdoor base stations, telemetry networks and wide-area RF coverage. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-500V-2 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-500V-2 470-510MHz N male Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-500V-2.5).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
