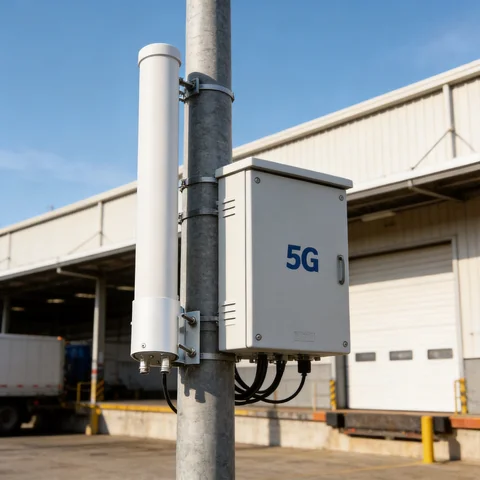

GL-DY2400VH12 MIMO antenna application scene 1

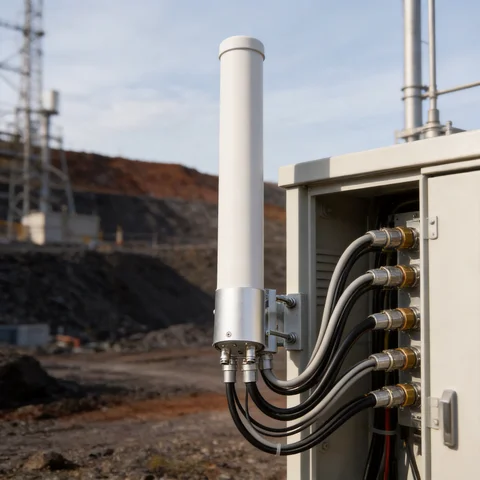

GL-DY2400VH12 MIMO antenna application scene 2

GL-DY2400VH12 MIMO antenna connector and mounting detail view

RF Product MIMO Antenna

GL-DY2400VH12 2.3-2.4GHz 2×N-K Mimo Antenna for RF Systems

Name: GL-DY2400VH12 2.3-2.4GHz 2×N-K Mimo Antenna for RF Systems
Brand: Rftech
SKU: GL-DY2400VH12

SKU GL-DY2400VH12

GL-DY2400VH12 is a MIMO antenna for 2.4GHz/WLAN/WIFI Wireless System. Its RF data lists 2300-2400 MHz operation, 15 dBi gain, h＋v polarization, and VSWR ≤1.5. Mechanical selection should confirm 2×N-K connector, Ф75×1150 dimensions against the installation plan. Design details include high gain, high isolation; light weight, small size, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.

SKU GL-DY2400VH12

Frequency 2300-2400

Dimensions Ф75×1150

gain 15

polarization H＋V

vswr ≤1.5

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY2400VH12
Frequency	2300-2400
Dimensions	Ф75×1150
gain	15
polarization	H＋V
vswr	≤1.5
impedance	50
connector	2×N-K
temperature	-40°c～60°c
Category	MIMO Antenna

Product Overview

Key Features

High Gain, High isolation
Light weight, Small size

Technical Specifications

Frequency Range	2300-2400
VSWR	≤1.5
Gain	15
Horizontal Beamwidth	360°
Vertical Beamwidth	8°
Polarization	H＋V
Input Impedance	50
Maximum Input Power	100
Lightning Protection	DC Ground
Connector Type	2×N-K
Dimensions	Ф75×1150
Radome Material	PVC
Radome Color	White
Operating Temperature	-40°c～60°c
Rated Wind Velocity	60

Application Scenarios

GL-DY2400VH12 is suitable for 2.4GHz/WLAN/WIFI Wireless System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY2400VH12 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY2400VH12 2.3-2.4GHz 2×N-K Mimo Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the MIMO Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY2400VH12).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
