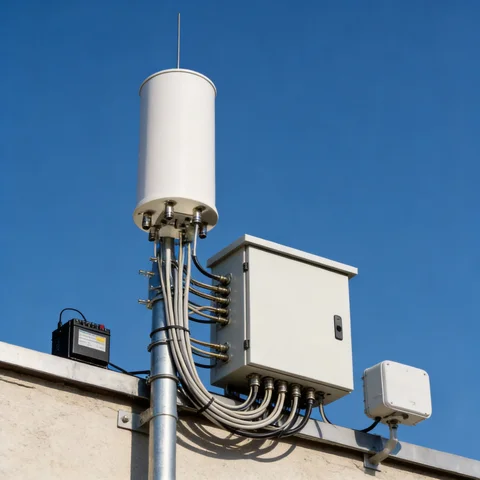

GL-DY2458V48 MIMO antenna application scene 1

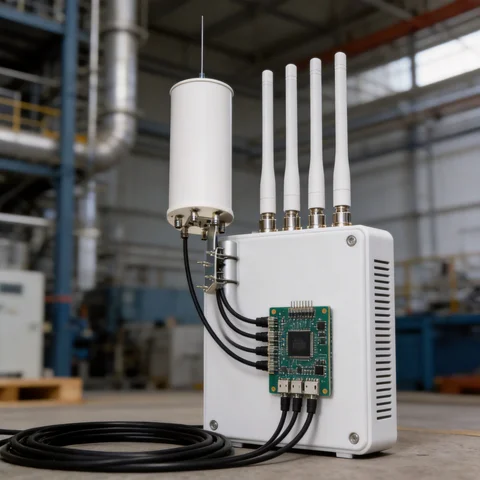

GL-DY2458V48 MIMO antenna application scene 2

GL-DY2458V48 MIMO antenna connector and mounting detail view

RF Product MIMO Antenna

GL-DY2458V48 2400-5850MHz 4×N-K Mimo Antenna for RF Systems

Name: GL-DY2458V48 2400-5850MHz 4×N-K Mimo Antenna for RF Systems
Brand: Rftech
SKU: GL-DY2458V48

SKU GL-DY2458V48

GL-DY2458V48 is a MIMO antenna for 2.4GHz/5 GHz/WLAN/WIFI Wireless System. Its RF data lists 2400-2500/5150-5850 MHz operation, 8 dBi gain, vertical polarization, and VSWR ≤1.5 / ≤2.0. Mechanical selection should confirm 4×N-K connector, Ф145×185 dimensions against the installation plan. Design details include two 2.4ghz ports，two 5ghz ports; multi-input and multi-output technology, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY2458V48

Frequency 2400-2500/5150-5850

Dimensions Ф145×185

gain 8

polarization Vertical

vswr ≤1.5 / ≤2.0

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY2458V48
Frequency	2400-2500/5150-5850
Dimensions	Ф145×185
gain	8
polarization	Vertical
vswr	≤1.5 / ≤2.0
impedance	50
connector	4×N-K
temperature	-40°c～60°c
Category	MIMO Antenna

Product Overview

Key Features

Two 2.4GHz ports，Two 5GHz ports
Multi-input and Multi-output Technology

Technical Specifications

Frequency Range	2400-2500/5150-5850
VSWR	≤1.5 / ≤2.0
Gain	8
Horizontal Beamwidth	360°
Polarization	Vertical
Input Impedance	50
Maximum Input Power	50
Lightning Protection	DC Ground
Connector Type	4×N-K
Dimensions	Ф145×185
Radome Material	ABS/PMMA
Radome Color	White
Operating Temperature	-40°c～60°c
Rated Wind Velocity	60

Application Scenarios

GL-DY2458V48 is suitable for 2.4GHz/5 GHz/WLAN/WIFI Wireless System. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY2458V48 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY2458V48 2400-5850MHz 4×N-K Mimo Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the MIMO Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY2458V48).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
