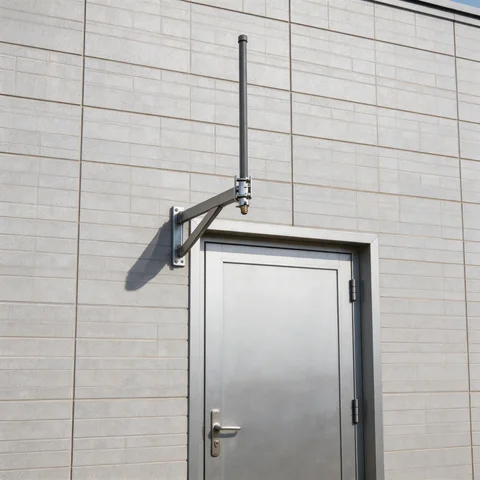

GL-DY3500V8 fiberglass omni antenna application scene 1

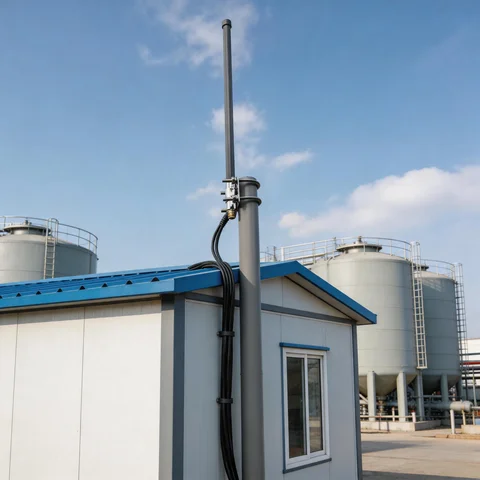

GL-DY3500V8 fiberglass omni antenna application scene 2

GL-DY3500V8 fiberglass omni antenna connector and mounting detail view

RF Product Fiberglass Omni Antenna

GL-DY3500V8 3.4-3.6GHz N-K Fiberglass Omni Antenna

Name: GL-DY3500V8 3.4-3.6GHz N-K Fiberglass Omni Antenna
Brand: Rftech
SKU: GL-DY3500V8

SKU GL-DY3500V8

GL-DY3500V8 is a fiberglass omni antenna for 5GNew Network System; Point to multipoint application. Its RF data lists 3400-3600 MHz operation, vertical polarization, and VSWR ≤1.5. Mechanical selection should confirm N-K connector, Ф20×430 dimensions against the installation plan. Design details include high gain, stable performance; high quality fiberglass radome, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°c～60°c, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY3500V8

Frequency 3400-3600

Dimensions Ф20×430

polarization Vertical

vswr ≤1.5

impedance 50

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY3500V8
Frequency	3400-3600
Dimensions	Ф20×430
polarization	Vertical
vswr	≤1.5
impedance	50
connector	N-K
temperature	-40°c～60°c
Category	Fiberglass Omni Antenna

Product Overview

Key Features

High Gain, Stable Performance
High Quality Fiberglass Radome
All Weather Operation

Technical Specifications

Frequency Range	3400-3600
VSWR	≤1.5
Horizontal Beamwidth	360°
Vertical Beamwidth	15°
Polarization	Vertical
Input Impedance	50
Maximum Input Power	50
Lightning Protection	DC Ground
Connector Type	N-K
Dimensions	Ф20×430
Weight	0.7
Radome Material	Fiberglass
Radome Color	gray
Operating Temperature	-40°c～60°c

Application Scenarios

GL-DY3500V8 is suitable for 5GNew Network System; Point to multipoint application. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY3500V8 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY3500V8 3.4-3.6GHz N-K Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY3500V8).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
