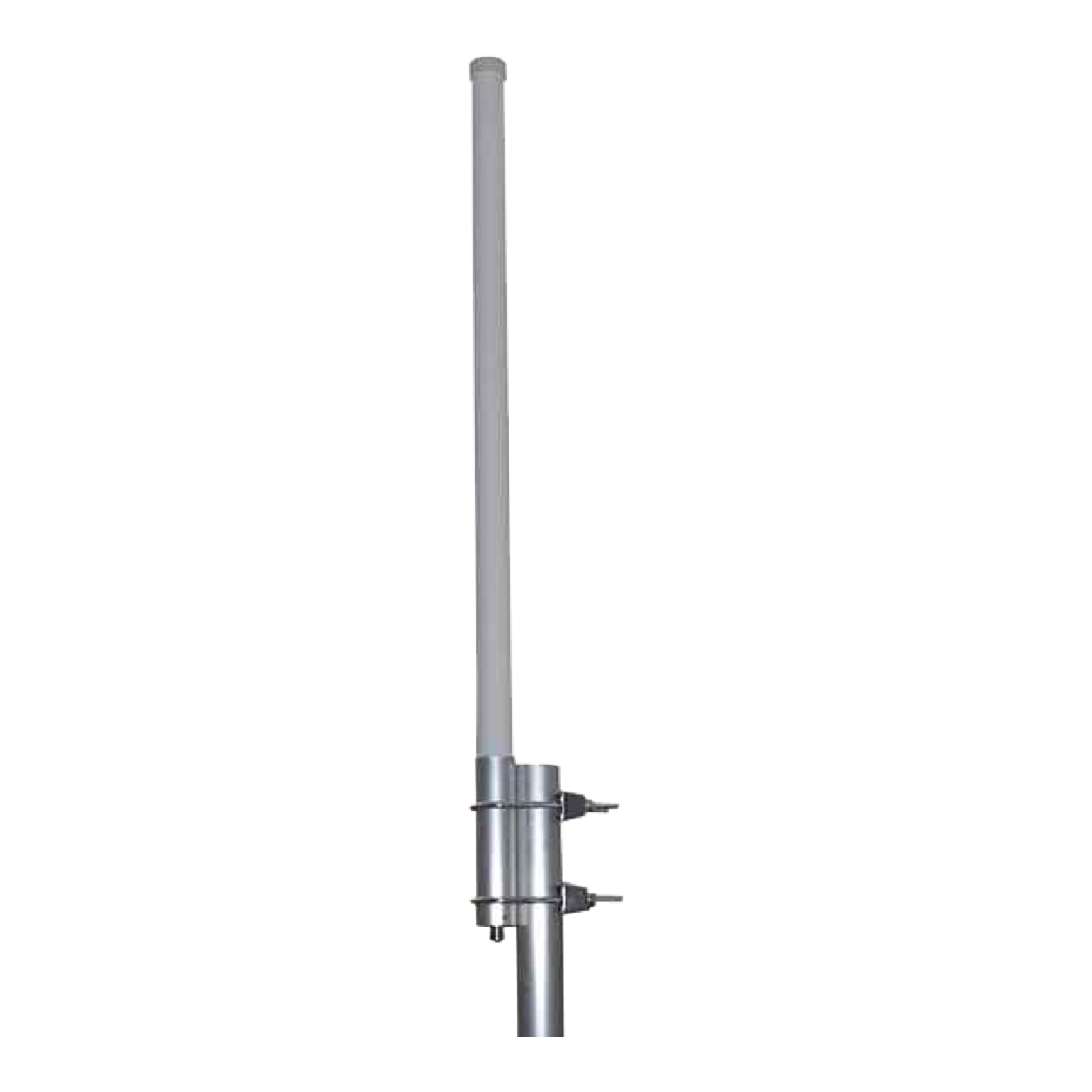

GL350AD5 330-370 MHz 5 dBi Fiberglass Omni Antenna
SKU GL350AD5
GL350AD5 is a 1.3 m fiberglass omni antenna for 330-370 MHz fixed UHF coverage, combining 5 dBi gain, vertical polarization and an N female connection.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350AD5 |
|---|---|
| Frequency | 330-370 MHz |
| Dimensions | 1.3 m |
| Connector | N Female |
| Mounting | Mast mount |
| Application | UHF fixed-site omnidirectional antenna |
| Bandwidth | 15 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 35 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 1.3 m |
| Weight | 1.5 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass |
| Category | Fiberglass Omni Antenna |
Fixed 330-370 MHz coverage
GL350AD5 is a fiberglass omnidirectional antenna for fixed UHF installations that require coverage around a mast rather than a targeted beam. The documented 5 dBi gain and 35° vertical beamwidth make it a moderate-gain option within the 330-370 MHz range.
Specified construction
The product is 1.3 m long, weighs 1.5 kg and is rated for 100 W input power with ≤1.5 VSWR. It uses vertical polarization, 50 Ω impedance and an N female connector. The stated fiberglass construction and 60 m/s wind rating support outdoor planning, but do not replace a site-specific bracket and grounding review.
Deployment use
Consider GL350AD5 for base stations, utility telemetry, industrial radio sites and temporary fixed masts that operate in the 330-370 MHz segment. Place it vertically and verify feeder length, tower loading and separation from nearby metalwork before commissioning.
Selection question
Choose this model when a 1.3 m fiberglass omni with N female feed and 5 dBi gain fits the coverage plan. Confirm the exact transmit and receive channels because the listed bandwidth is 15 MHz.
Typical Applications
- UHF fixed-site omnidirectional antenna
- System integration with a specified 50 Ω feed line
- Projects that document frequency, connector and mounting details before ordering
Questions Before Ordering
Does GL350AD5 provide 360-degree coverage?
It is specified as an omnidirectional antenna, so it is intended for coverage around the mast in the horizontal plane.
What mounting is expected?
The product is planned for a fixed mast installation; select the bracket and pole separately for the site.
Related Resources
- Explore omnidirectional antennas
- Compare omni and directional antenna patterns
- Request a fixed-site quotation
Technical Specifications
| Frequency Range | 330-370 MHz |
|---|---|
| Bandwidth | 15 MHz |
| Gain | 5 dBi |
| Vertical Beamwidth | 35 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 1.3 m |
| Weight | 1.5 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | N female |
| Remarks | Fiberglass |
Selection and Project Support
GL350AD5 330-370 MHz 5 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350AD5).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
