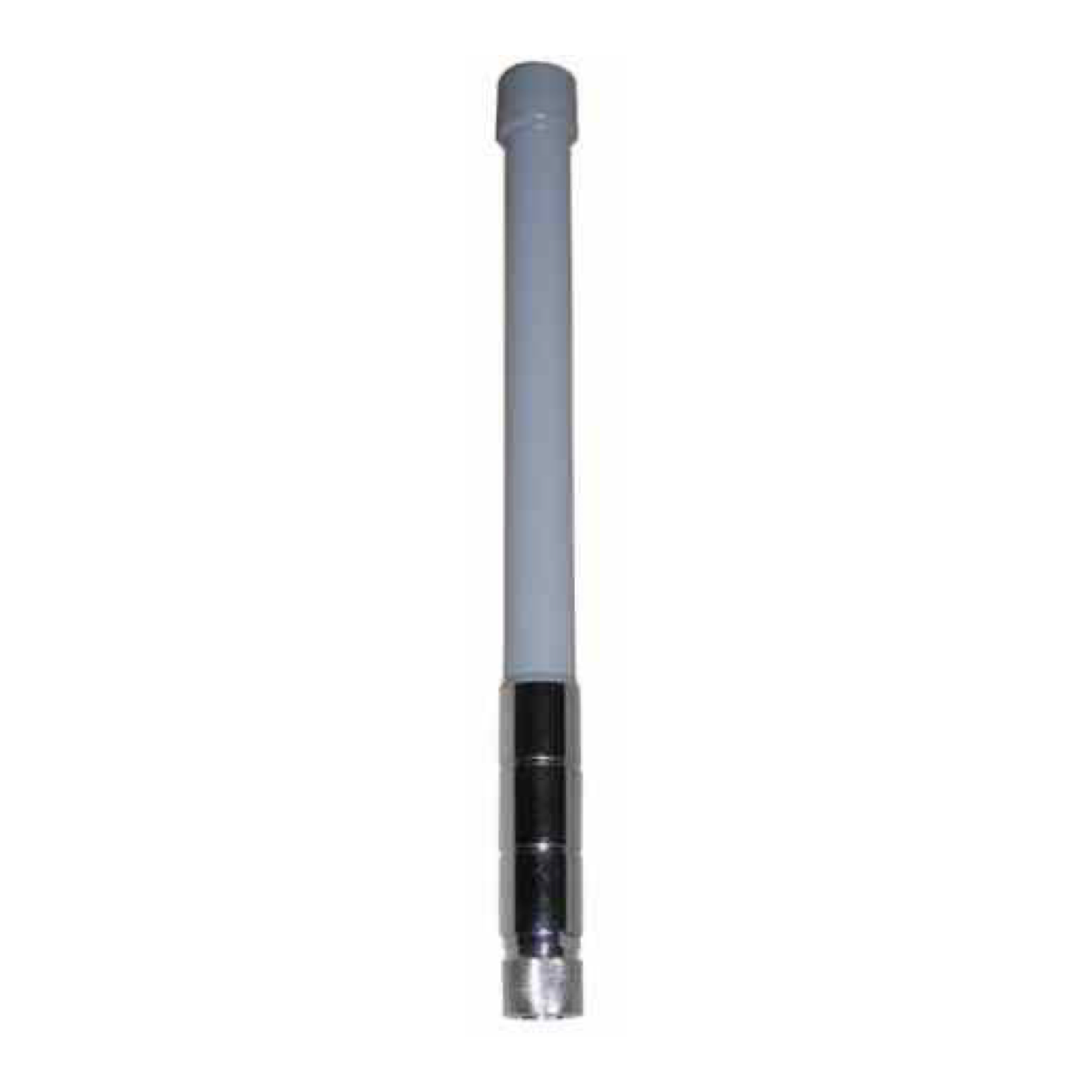

GL350AT3 300-390 MHz 3 dBi Fiberglass Omni Antenna

SKU GL350AT3

GL350AT3 is a 300-390 MHz fiberglass omni antenna that pairs a compact 0.6 m profile with N male feed and source-stated M110 magnetic-mount or pole installation options.

SKU GL350AT3

Frequency 300-390 MHz

Dimensions 0.6 m

Connector N Male

Mounting M110 magnetic mount or pole installation

Application UHF mobile or temporary omnidirectional antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350AT3
Frequency	300-390 MHz
Dimensions	0.6 m
Connector	N Male
Mounting	M110 magnetic mount or pole installation
Application	UHF mobile or temporary omnidirectional antenna
Bandwidth	10 MHz
Gain	3 dBi
Vertical Beamwidth	50 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	0.6 m
Weight	0.4 kg
Rated Wind Velocity	60 m/s
Remarks	Fiberglass,It can be installed with M110 magnetic mount or pole.
Category	Fiberglass Omni Antenna

Flexible mounting configuration

GL350AT3 is specified for either an M110 magnetic mount or pole installation, unlike a strictly mast-only fiberglass antenna. Its 300-390 MHz range, 3 dBi gain and 0.6 m length make it suitable where an installation may move between temporary vehicle-based and fixed support locations.

Electrical match

The source documents 100 W maximum power, vertical polarization, 50 Ω impedance and ≤1.5 VSWR. The feed connection is N male. Match the selected M110 mount or pole hardware to the actual use case and verify that the mating cable, ground plane and environmental exposure are compatible.

Deployment use

Consider GL350AT3 for field kits, temporary UHF coverage points, service vehicles using the stated mount, or compact poles. It should not be treated as a substitute for a tall high-gain base-station antenna when a narrow vertical beam is required.

Selection question

Select GL350AT3 when mounting flexibility and an N male connection are more important than maximum gain. Specify whether the intended delivery is for M110 magnetic mounting or a pole installation.

Typical Applications

UHF mobile or temporary omnidirectional antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

Can GL350AT3 be mounted on a vehicle?

The source states compatibility with an M110 magnetic mount; confirm the vehicle ground plane and mount arrangement for the installation.

What is the feed connector?

GL350AT3 is specified with an N male connector.

Related Resources

Technical Specifications

Frequency Range	300-390 MHz
Bandwidth	10 MHz
Gain	3 dBi
Vertical Beamwidth	50 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Length	0.6 m
Weight	0.4 kg
Rated Wind Velocity	60 m/s
Connector	N male
Remarks	Fiberglass,It can be installed with M110 magnetic mount or pole.

Selection and Project Support

GL350AT3 300-390 MHz 3 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350AT3).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
