Frequency330-390 MHz
Bandwidth14 MHz
Gain8.5 dBi
Vertical Beamwidth14.5 °
VSWR<=1.5
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power100 W
RF Product · Fiberglass Omni Antenna

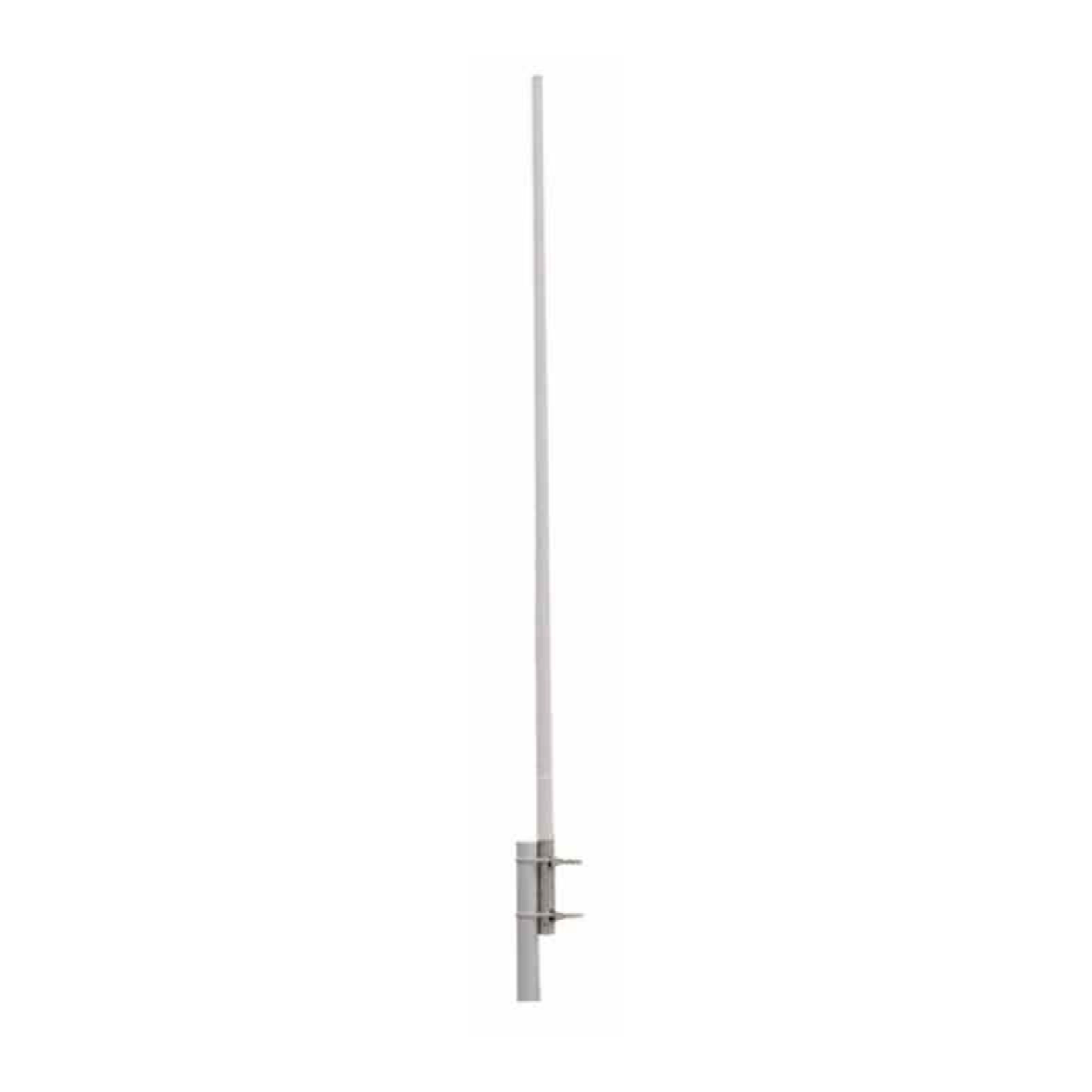

330-390 MHz 8.5 dBi Fiberglass Omni Antenna GL350B
SKUGL350B
GL350B is a 2.5 m, 8.5 dBi fiberglass omni antenna for 330-390 MHz fixed UHF coverage where a tighter vertical beam is acceptable.
330-390 MHz2.5 mUHF or N female
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesPaid sample; fee credited toward a volume order
Standard lead time14 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL350B
Frequency330-390 MHz
Dimensions2.5 m
ConnectorUHF or N female
MountingMast mount
ApplicationHigh-gain UHF fixed-site omnidirectional antenna
Bandwidth14 MHz
Gain8.5 dBi
Vertical Beamwidth14.5 °
VSWR<=1.5
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power100 W
Length2.5 m
Weight2.0 kg
Rated Wind Velocity60 m/s
RemarksFiberglass
CategoryFiberglass Omni Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.Dimensions2.5 m
ConnectorUHF or N female
MountingMast mount
Length2.5 m
Weight2.0 kg
Rated Wind Velocity60 m/s
SKUGL350B
ApplicationHigh-gain UHF fixed-site omnidirectional antenna
RemarksFiberglass
CategoryFiberglass Omni Antenna
