GL350BF 300-390 MHz 8.5 dBi Fiberglass Omni Antenna
SKU GL350BF

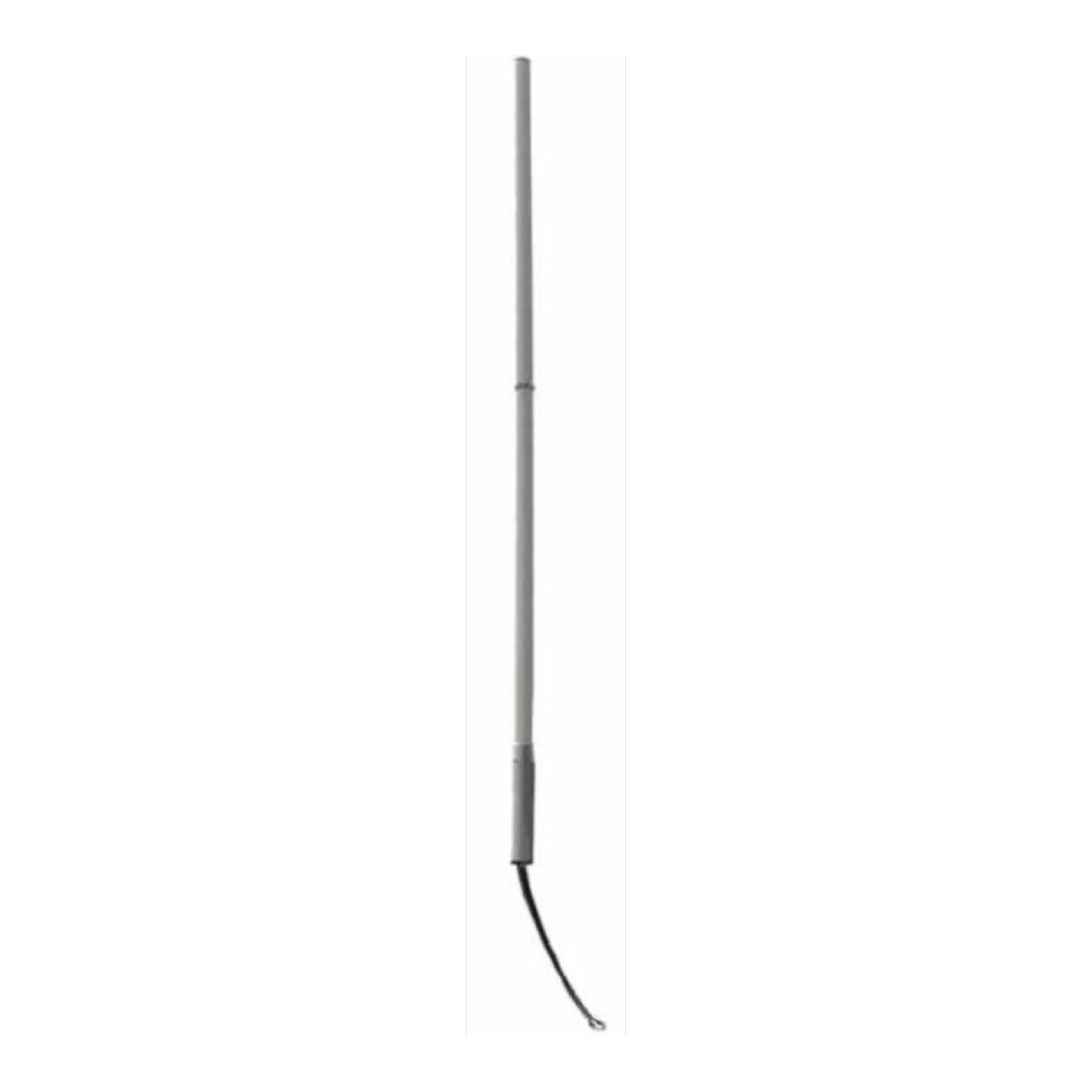

GL350BF is a 2.7 m fiberglass omni antenna covering 300-390 MHz, specified for 8.5 dBi gain, N female or customized feed connection and fixed outdoor deployment.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350BF |
|---|---|
| Frequency | 300-390 MHz |
| Dimensions | 2.7 m |
| Connector | N Female or Customization |
| Mounting | Mast mount |
| Application | High-gain UHF fixed-site omnidirectional antenna |
| Bandwidth | 10 MHz |
| Gain | 8.5 dBi |
| Vertical Beamwidth | 14.5 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 2.7 m |
| Weight | 2.5 kg |
| Rated Wind Velocity | 60 m/s |
| Remarks | Fiberglass |
| Category | Fiberglass Omni Antenna |
Broad 300-390 MHz coverage
GL350BF combines an 8.5 dBi gain figure with a wider 300-390 MHz frequency range. It is a long fiberglass omni option for a fixed UHF site that needs horizontal coverage across the documented range and can accommodate a 2.7 m antenna.
RF and physical limits
The source lists a 14.5° vertical beamwidth, vertical polarization, 100 W maximum power and ≤1.5 VSWR. The 2.7 m, 2.5 kg construction has an N female connector or customization option. Confirm the exact interface and mast arrangement before procurement.
Deployment use
This model can be considered for outdoor radio sites, utility communications and remote facilities that need a tall omnidirectional radiator. It should be mounted clear of obstructions, with the feeder, lightning protection and support structure selected for the actual site conditions.
Selection question
Choose GL350BF where the 300-390 MHz operating range and 2.7 m high-gain profile are wanted. If the installation has limited height or requires a broader vertical pattern, review a shorter lower-gain option.
Typical Applications
- High-gain UHF fixed-site omnidirectional antenna
- System integration with a specified 50 Ω feed line
- Projects that document frequency, connector and mounting details before ordering
Questions Before Ordering
Can GL350BF use a non-standard connector?
Yes. The source lists N female or customization; record the requested connector in the RFQ.
What is the physical length?
The documented antenna length is 2.7 m.
Related Resources
Technical Specifications
| Frequency Range | 300-390 MHz |
|---|---|
| Bandwidth | 10 MHz |
| Gain | 8.5 dBi |
| Vertical Beamwidth | 14.5 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Length | 2.7 m |
| Weight | 2.5 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | N female or customization |
| Remarks | Fiberglass |
Selection and Project Support
GL350BF 300-390 MHz 8.5 dBi Fiberglass Omni Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Fiberglass Omni Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350BF).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
