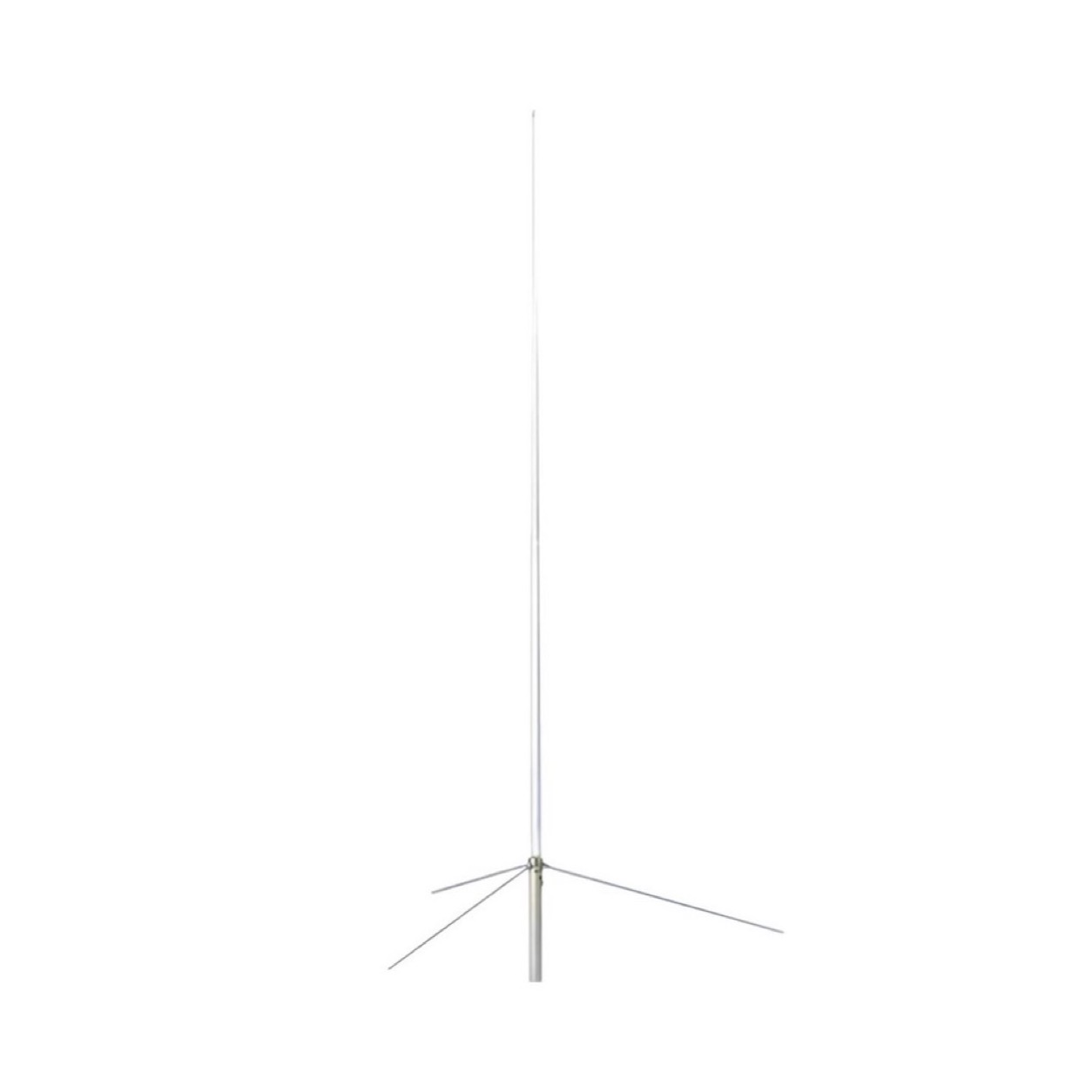

GLTDTF22H 136-174 MHz Base Station Antenna
SKU GLTDTF22H
GLTDTF22H two-section 136-174 MHz fiberglass base station antenna with 6.7 dBi gain, SO239 connector, 3200 mm length and 350 W rating.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLTDTF22H |
|---|---|
| Frequency | 136-174 MHz |
| Dimensions | Length 3200 mm |
| Connector | SO239 |
| Mounting | Pole Mount |
| Application | Base station antenna |
| Gain | 6.7 dBi |
| VSWR | < 1.5 |
| Maximum Power | 350 W |
| Impedance | 50 ohm |
| Radiation Pattern | Omnidirectional |
| Polarization | Vertical |
| Type | Base station antenna |
| Structure | 2-section |
| Length | 3200 mm |
| Material | Fiberglass + copper |
| Antenna Connector | SO239 |
| Rated Wind Resistance | 50 m/s |
| Applicable Support Pole Diameter | 30-62 mm |
| Accessories | Radiating element x3; U-clamp x2; cutting drawing x1 |
| Category | Fiberglass Omni Antenna |
GLTDTF22H product overview
GLTDTF22H is a two-section fiberglass base station antenna covering 136-174 MHz. Its datasheet specifies 6.7 dBi gain, vertical polarization, 50 ohm impedance, omnidirectional radiation and VSWR below 1.5.
Product fit
The documented 3200 mm structure uses an SO239 connector and is rated for 350 W maximum power and 50 m/s wind resistance.
Integration and ordering notes
Before ordering, confirm the 136-174 MHz operating range, SO239 mating interface, 30-62 mm support-pole diameter, available 3200 mm clearance and the listed accessories.
Frequently asked questions
What frequency range does GLTDTF22H cover?
The specified frequency range is 136-174 MHz.
What gain and VSWR are specified?
The datasheet specifies 6.7 dBi gain and VSWR below 1.5.
Which connector does it use?
The specified antenna connector is SO239.
What support-pole size is listed?
The applicable support-pole diameter is 30-62 mm.
