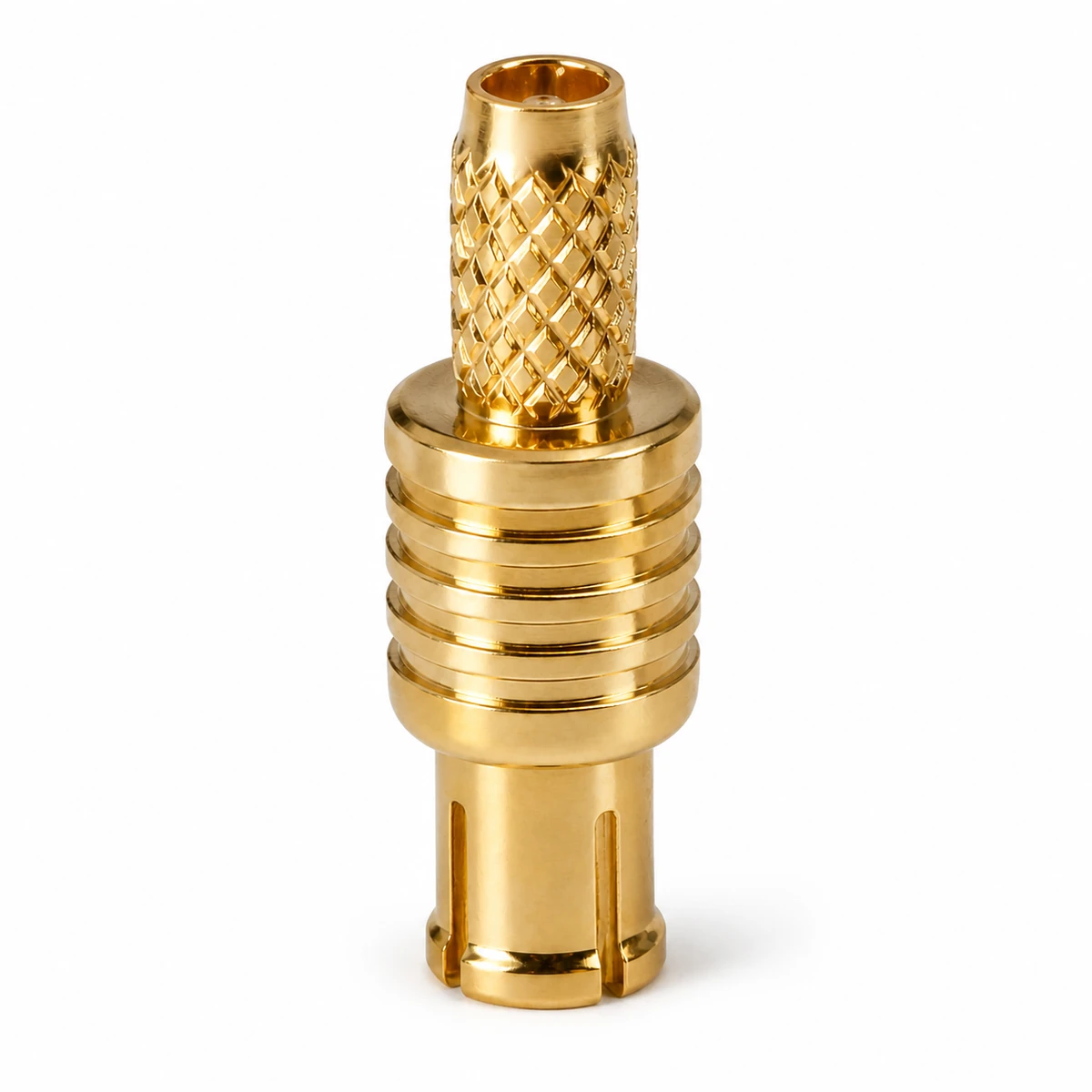

MCX-HF-Steckverbinder als weiß freigestellte Produktaufnahme

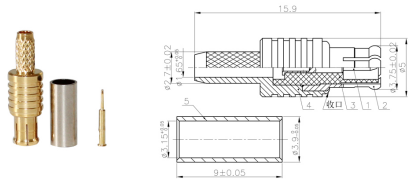

GL-MCXJ1 MCX coaxial connector and dimensional drawing

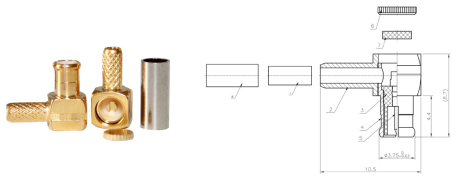

GL-MCXJ2 MCX coaxial connector and dimensional drawing

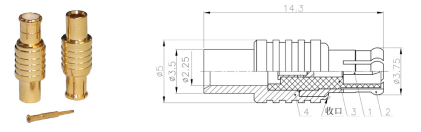

GL-MCXJ3 MCX coaxial connector and dimensional drawing

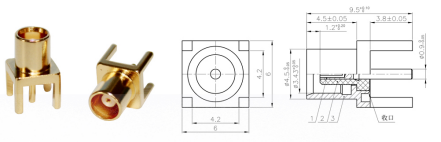

GL-MCXKE MCX coaxial connector and dimensional drawing

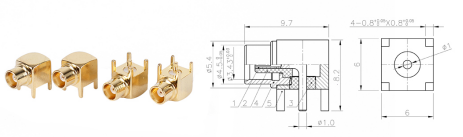

GL-MCXKWE MCX coaxial connector and dimensional drawing

MCX RF Coaxial Connectors – GL-MCX Series

Compare 5 MCX RF coaxial connector models by documented frequency limit, VSWR and dimensions. Custom requirements are available by RFQ.

Frequency 5 / 7 / 8 / 10 GHz by model

Dimensions See model-specific table

Connector MCX

Impedance 50 ohm

Test Voltage (Max) 2500 V

PIM (3rd Order) ≤-160 dBc @ 2 x 20 W

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

Frequency	5 / 7 / 8 / 10 GHz by model
Dimensions	See model-specific table
Connector	MCX
Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn
Model	GL-MCXJ1 \| GL-MCXJ2 \| GL-MCXJ3 \| GL-MCXKE \| GL-MCXKWE
Category	Coaxial Cables & Connectors

MCX connector series overview

This product page groups 5 separately documented MCX coaxial connector models. Each model remains individually selectable and keeps its own frequency limit, VSWR, dimensions and source-bound image.

Model selection

Model	Frequency limit	VSWR	Dimensions (source wording)
GL-MCXJ1	8 GHz	1.10	Φ2.715.95
GL-MCXJ2	10 GHz	1.15	Φ10.5*8.7
GL-MCXJ3	5 GHz	1.10	Φ514.33.75
GL-MCXKE	7 GHz	1.15	Φ4.59.50.9
GL-MCXKWE	10 GHz	1.10	Φ5.49.78.2

Common documented specifications

Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn

Integration and ordering notes

Before requesting a quote, select the exact model and confirm its dimensional drawing, frequency limit and VSWR. Custom connector requirements can be discussed without implying a fixed MOQ, price, stock level or lead time.

Frequently asked questions

Which models are included on this page?

GL-MCXJ1, GL-MCXJ2, GL-MCXJ3, GL-MCXKE, GL-MCXKWE.

Do all MCX models have the same frequency limit?

No. The documented limits are model-specific and shown in the selection table.

What impedance is documented?

All source documents on this page specify 50 ohm impedance.

Can custom connector requirements be discussed?

Yes. Send the target model, mating interface and required specifications through the RFQ form for review.
