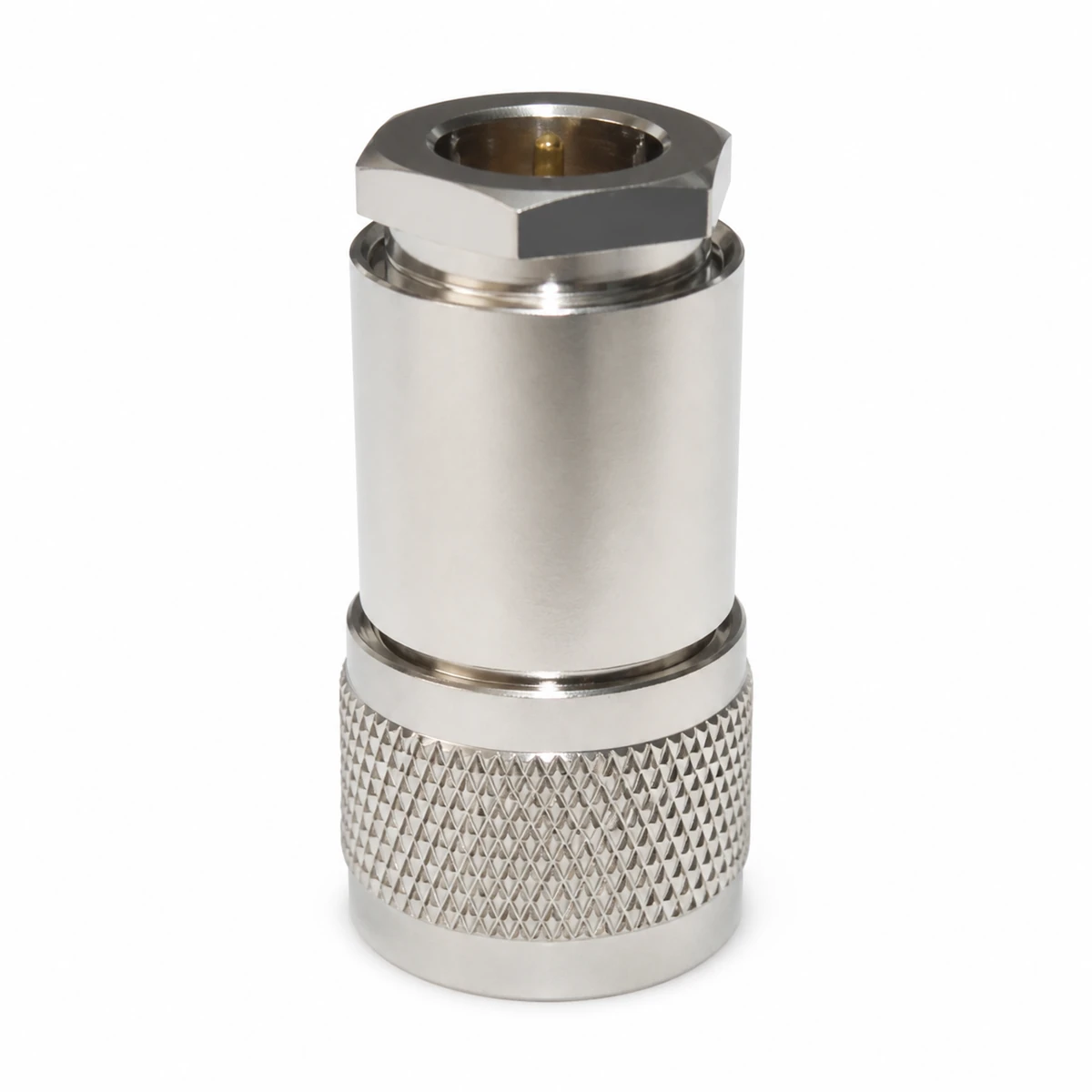

N-HF-Steckverbinder als weiß freigestellte Produktaufnahme

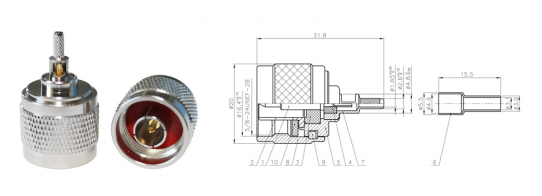

GL-NCJ1.5 N Type coaxial connector and dimensional drawing

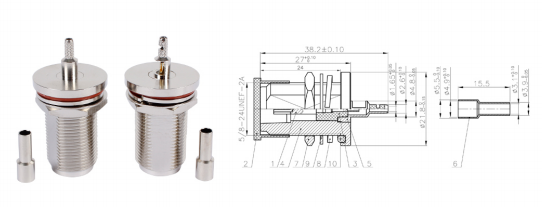

GL-NCKY1.5 N Type coaxial connector and dimensional drawing

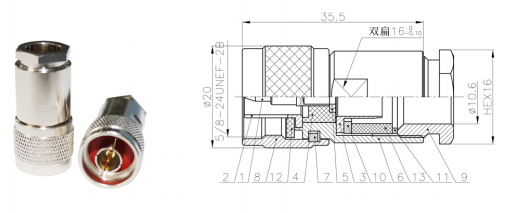

GL-NJ7D N Type coaxial connector and dimensional drawing

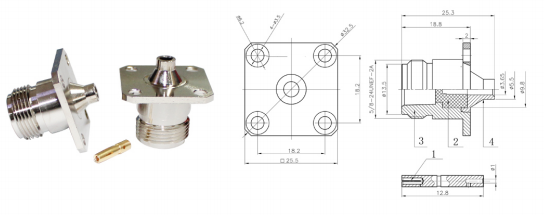

GL-NKFB3 N Type coaxial connector and dimensional drawing

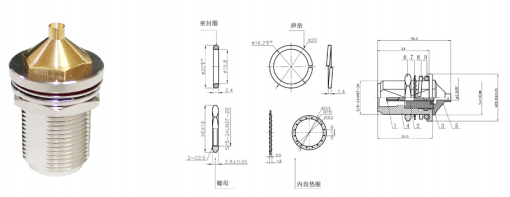

GL-NKYB2 N Type coaxial connector and dimensional drawing

N Type RF Coaxial Connectors – GL-N Series

Compare 5 N Type RF coaxial connector models by documented frequency limit, VSWR and dimensions. Custom requirements are available by RFQ.

Frequency 9 / 10 / 11 GHz by model

Dimensions See model-specific table

Connector N-Type

Impedance 50 ohm

Test Voltage (Max) 2500 V

PIM (3rd Order) ≤-160 dBc @ 2 x 20 W

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

Frequency	9 / 10 / 11 GHz by model
Dimensions	See model-specific table
Connector	N-Type
Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn
Model	GL-NCJ1.5 \| GL-NCKY1.5 \| GL-NJ7D \| GL-NKFB3 \| GL-NKYB2
Category	Coaxial Cables & Connectors

N Type connector series overview

This product page groups 5 separately documented N Type coaxial connector models. Each model remains individually selectable and keeps its own frequency limit, VSWR, dimensions and source-bound image.

Model selection

Model	Frequency limit	VSWR	Dimensions (source wording)
GL-NCJ1.5	10 GHz	1.10	Φ2031.84.8
GL-NCKY1.5	9 GHz	1.10	Φ21.838.24.8
GL-NJ7D	10 GHz	1.10	Φ2035.510.6
GL-NKFB3	9 GHz	1.10	Φ13.525.35.5
GL-NKYB2	11 GHz	1.10	Not stated in source table

Common documented specifications

Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn

Integration and ordering notes

Before requesting a quote, select the exact model and confirm its dimensional drawing, frequency limit and VSWR. Custom connector requirements can be discussed without implying a fixed MOQ, price, stock level or lead time.
