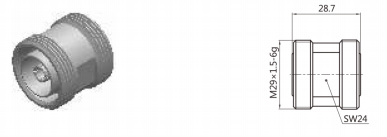

GL-A141 Adaptor coaxial connector and dimensional drawing

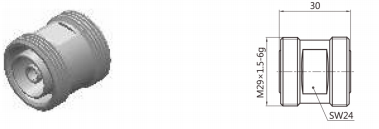

GL-A142 Adaptor coaxial connector and dimensional drawing

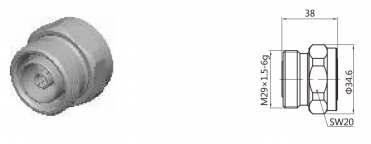

GL-A143 Adaptor coaxial connector and dimensional drawing

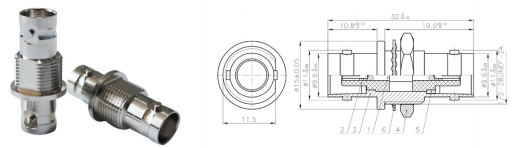

GL-BNCKKY Adaptor coaxial connector and dimensional drawing

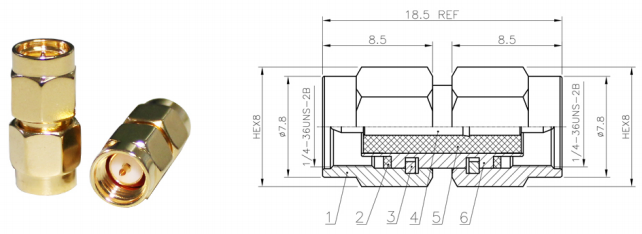

GL-SMAJJ Adaptor coaxial connector and dimensional drawing

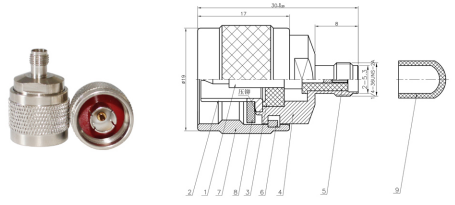

GL-SMAKJ Adaptor coaxial connector and dimensional drawing

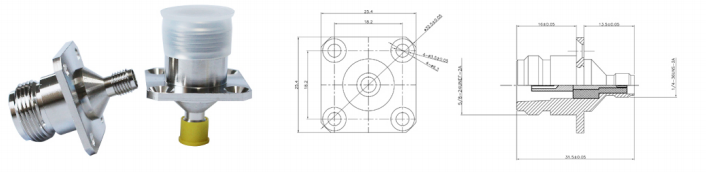

GL-SMAKKF Adaptor coaxial connector and dimensional drawing

GL-SMAKKY Adaptor coaxial connector and dimensional drawing

RF Product Coaxial Cables & Connectors

RF Coaxial Adapters – GL Adapter Series

Compare 8 Adaptor RF coaxial connector models by documented frequency limit, VSWR and dimensions. Custom requirements are available by RFQ.

Frequency 4 / 5 / 7 / 8 / 11 GHz by model

Dimensions See model-specific table

Impedance 50 ohm

Test Voltage (Max) 2500 V

PIM (3rd Order) ≤-160 dBc @ 2 x 20 W

Mating Cycles ≥ 500

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

Frequency	4 / 5 / 7 / 8 / 11 GHz by model
Dimensions	See model-specific table
Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn
Model	GL-A141 \| GL-A142 \| GL-A143 \| GL-BNCKKY \| GL-SMAJJ \| GL-SMAKJ \| GL-SMAKKF \| GL-SMAKKY
Category	Coaxial Cables & Connectors

Adaptor connector series overview

This product page groups 8 separately documented Adaptor coaxial connector models. Each model remains individually selectable and keeps its own frequency limit, VSWR, dimensions and source-bound image.

Model selection

Model	Frequency limit	VSWR	Dimensions (source wording)
GL-A141	4 GHz	1.10	Φ25*28.7
GL-A142	5 GHz	1.10	Φ26*30
GL-A143	4 GHz	1.10	Φ34.6*38
GL-BNCKKY	11 GHz	1.15	Φ153211
GL-SMAJJ	7 GHz	1.15	Φ7.8177.8
GL-SMAKJ	4 GHz	1.10	Φ19*30
GL-SMAKKF	8 GHz	1.10	Φ18.2*31.5
GL-SMAKKY	5 GHz	1.10	Φ5.81124

Common documented specifications

Impedance	50 ohm
Test Voltage (Max)	2500 V
PIM (3rd Order)	≤-160 dBc @ 2 x 20 W
Mating Cycles	≥ 500
Coupling Torque	Max 1.7 Nm
Recommended Coupling Torque	0.7-1.1 Nm
Temperature Range	-55℃-+155℃
Outer Contact	Brass CuSnZn Plating
Center Contact	Brass Ag Plating
Cable Group	N/A
Plating	CuSnZn

Integration and ordering notes

Before requesting a quote, select the exact model and confirm its dimensional drawing, frequency limit and VSWR. Custom connector requirements can be discussed without implying a fixed MOQ, price, stock level or lead time.
