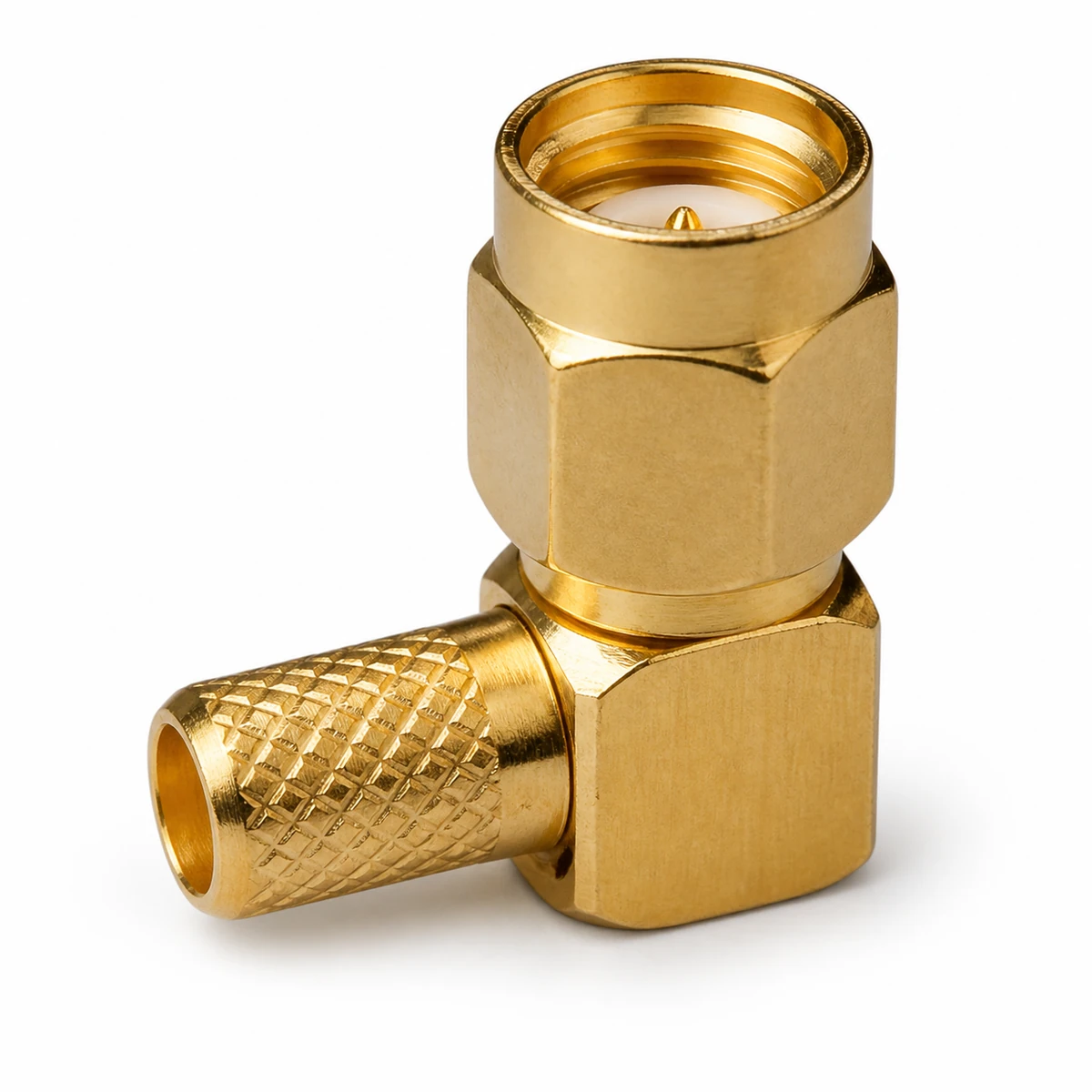

SMA RF Coaxial Connectors – GL-SMAC Series
Compare six GL-SMAC SMA RF coaxial connector models by documented frequency limit, VSWR and dimensions. Custom requirements are available by RFQ.
5 / 6 / 7 / 10 / 11 GHz by modelSee model-specific tableSMA
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.Frequency5 / 6 / 7 / 10 / 11 GHz by model
DimensionsSee model-specific table
ConnectorSMA
Impedance50 ohm
Test Voltage (Max)2500 V
PIM (3rd Order)≤-160 dBc @ 2 x 20 W
Mating Cycles≥ 500
Coupling TorqueMax 1.7 Nm
Recommended Coupling Torque0.7-1.1 Nm
Temperature Range-55℃-+155℃
Outer ContactBrass CuSnZn Plating
Center ContactBrass Ag Plating
Cable GroupN/A
PlatingCuSnZn

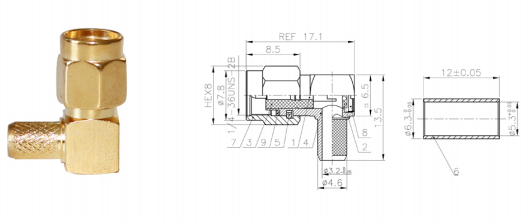

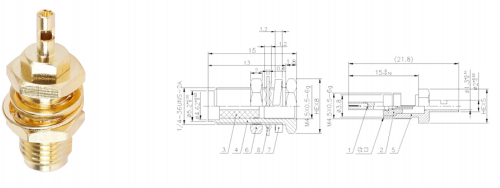

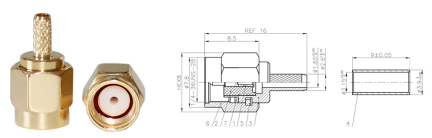

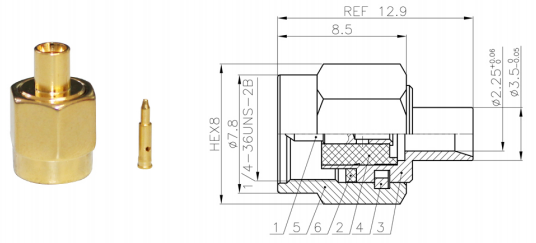

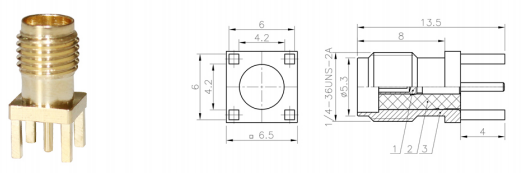

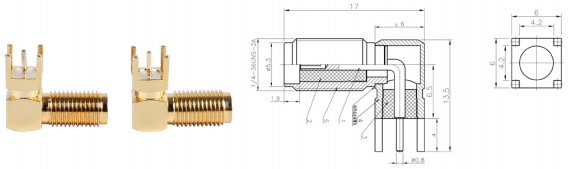

ModelGL-SMAC1 | GL-SMAC2 | GL-SMAC3 | GL-SMAC4 | GL-SMAC5 | GL-SMAC6
CategoryCoaxial Cables & Connectors
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.DimensionsSee model-specific table
ConnectorSMA
Cable GroupN/A
Temperature Range-55℃-+155℃
Test Voltage (Max)2500 V
Mating Cycles≥ 500
Coupling TorqueMax 1.7 Nm
Recommended Coupling Torque0.7-1.1 Nm
Outer ContactBrass CuSnZn Plating
Center ContactBrass Ag Plating
PlatingCuSnZn
ModelGL-SMAC1 | GL-SMAC2 | GL-SMAC3 | GL-SMAC4 | GL-SMAC5 | GL-SMAC6
CategoryCoaxial Cables & Connectors
SMA integration
RF pigtail selection
Compare connector ratings with the complete cable assembly requirements.Choosing SMA connectors for miniature RF pigtails
The six GL-SMAC models above have different individual frequency limits and dimensions. For a board-to-enclosure pigtail, qualify the cable and both terminations as one assembly. A connector rating alone does not establish the finished cable rating.
C39 is a separate cable assembly, not a GL-SMAC model. Its revision A1 drawing dated 15 October 2021 specifies black 1.13 mm coaxial cable, a 100 mm reference dimension, an SMA female bulkhead connector with a 15 mm threaded section, and an IPEX-labelled miniature connector. The listed assembly specifications are 50 ohm, 0–3 GHz and VSWR less than 1.25. These values do not replace the GL-SMAC specifications above.
Confirm the exact miniature board-side mating series before ordering. C39 is not documented for 5 GHz Wi-Fi or 6 GHz operation. Its red silicone ring is a sealing component, not evidence of an IP67 or IP68 rating; request a tested installation configuration for outdoor use.
Before ordering a pigtail
- Confirm SMA versus RP-SMA, centre contact and the exact board receptacle reference.
- State operating bands, required insertion loss, cable length reference points and tolerance.
- Check panel hole, panel thickness and cable routing; use the cable supplier’s bend-radius limit and support the cable near the board.
- Separate continuity checks from RF qualification. Request VSWR or return loss and insertion loss over the required band, plus any sealing and compliance evidence.
