An LTE antenna is an antenna tuned to the cellular frequency bands used by 4G LTE networks — roughly 600 MHz to 2700 MHz — so a modem, router, or IoT device can send and receive data over a mobile network. It is not a Wi-Fi antenna and not automatically a 5G antenna; the difference is which frequencies it is matched to. If you have a cellular device that needs better signal or external connectivity, the LTE antenna is the part that connects the modem to the network.
How an LTE antenna works
A cellular modem transmits and receives radio signals on licensed bands. The LTE antenna’s job is to radiate those signals efficiently on the bands your carrier uses and to capture the weak downlink signal coming back. “Efficient on the band” is the key phrase: an antenna only performs where it is matched. An antenna tuned for 2.4 GHz Wi-Fi will be a poor LTE antenna, and vice versa, even though they may look similar and share an SMA connector.
Most practical LTE antennas are wideband — they cover the whole 698–2700 MHz cellular range in one part rather than a single band — because LTE uses many bands and devices roam across them. That is why a good LTE antenna spec usually shows a frequency range, not a single number.

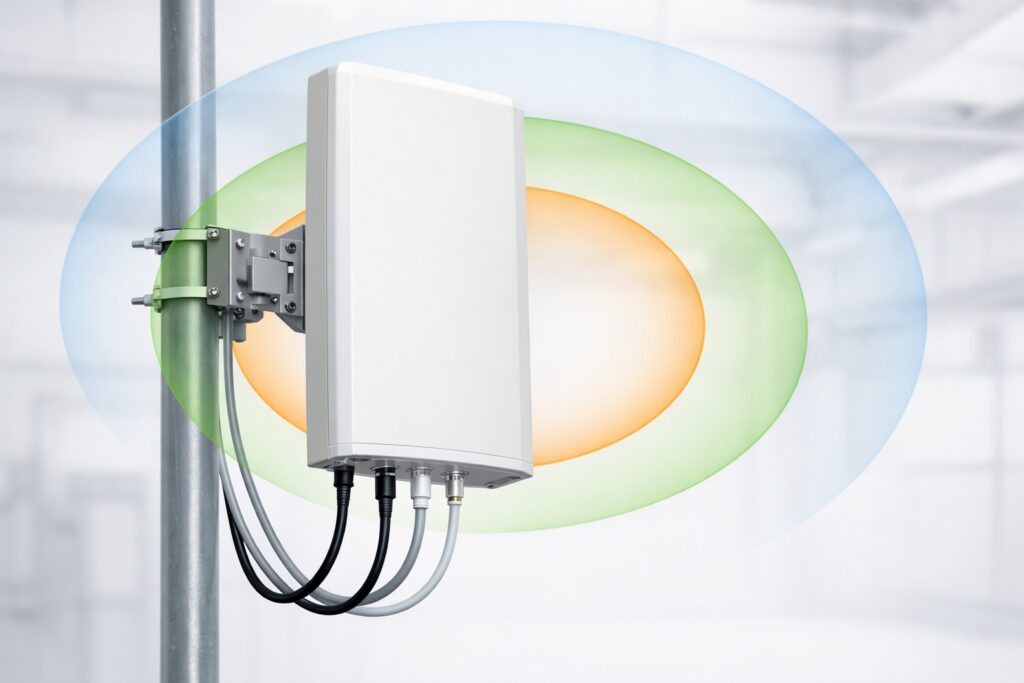

The bands an LTE antenna covers
LTE is spread across low, mid, and high bands. A typical wideband LTE antenna targets:
| Segment | Approx. frequency | Role |
|---|---|---|
| Low band | 600–960 MHz | Range and building penetration |
| Mid band | 1710–2170 MHz | Balance of speed and coverage |
| High band | 2300–2700 MHz | Capacity in dense areas |
Because many sub-6 GHz 5G deployments reuse this same spectrum, a wideband LTE antenna often also works on those 5G bands — but not on new 5G mid-band above ~3 GHz or on mmWave. (We cover that fully in 4G vs 5G antenna.)

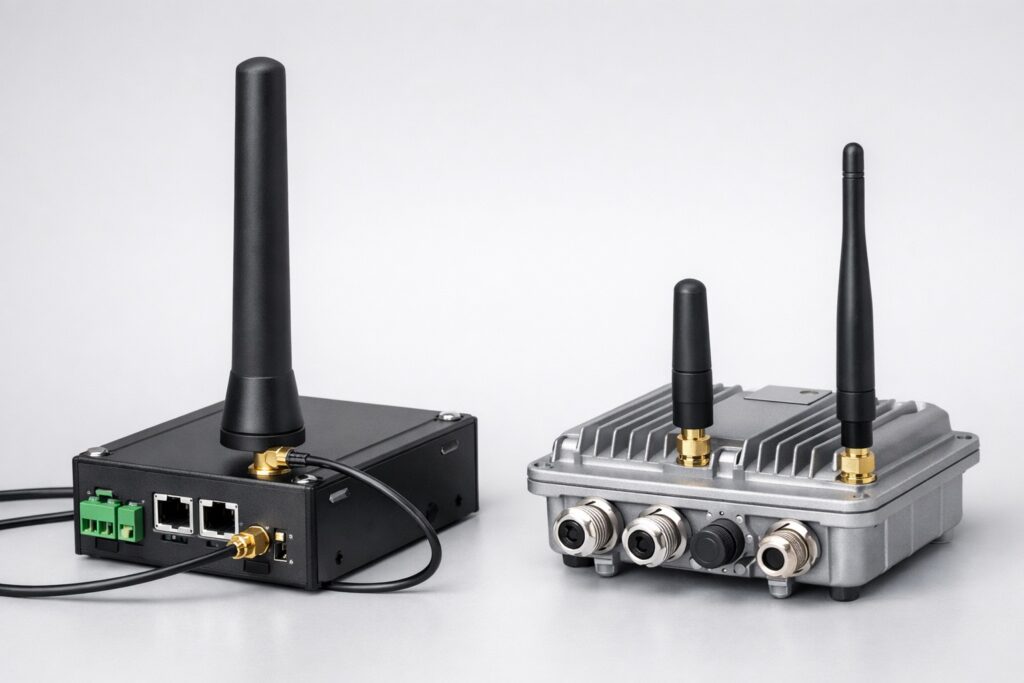

LTE antenna vs Wi-Fi antenna: not interchangeable
This is the most common mix-up. They are different parts for different jobs:
- An LTE antenna covers cellular bands (≈600–2700 MHz) and connects to a mobile network.
- A Wi-Fi antenna covers the 2.4 GHz and 5 GHz ISM bands and connects to a local wireless LAN.
They sometimes share a connector and a similar shape, which is exactly why people swap them by mistake — and then get poor performance. If the device is talking to a cell tower, it needs an LTE (cellular) antenna. If it is talking to a local router, it needs a Wi-Fi antenna. Combination antennas exist that include both, but each element inside is still tuned to its own bands.
Cellular antenna fit
Need the right cellular antenna for your router, gateway or device?
Share the modem type, frequency bands, MIMO ports, mounting environment and cable length. We can recommend suitable 4G, 5G or MIMO antenna options.
Do you need an external LTE antenna? Quick selection
You need a dedicated or external LTE antenna when the device’s built-in antenna isn’t enough — weak signal, an enclosure that blocks RF, a remote install, or a fixed location at the edge of coverage. When choosing one, check four things:
- Band coverage. Does it span the LTE bands your carrier uses (commonly 698–2700 MHz)?
- Form factor. Embedded PCB/patch for inside a product, or external screw/magnetic for outside?
- Connector. SMA, Fakra, IPEX/u.FL — match the modem.

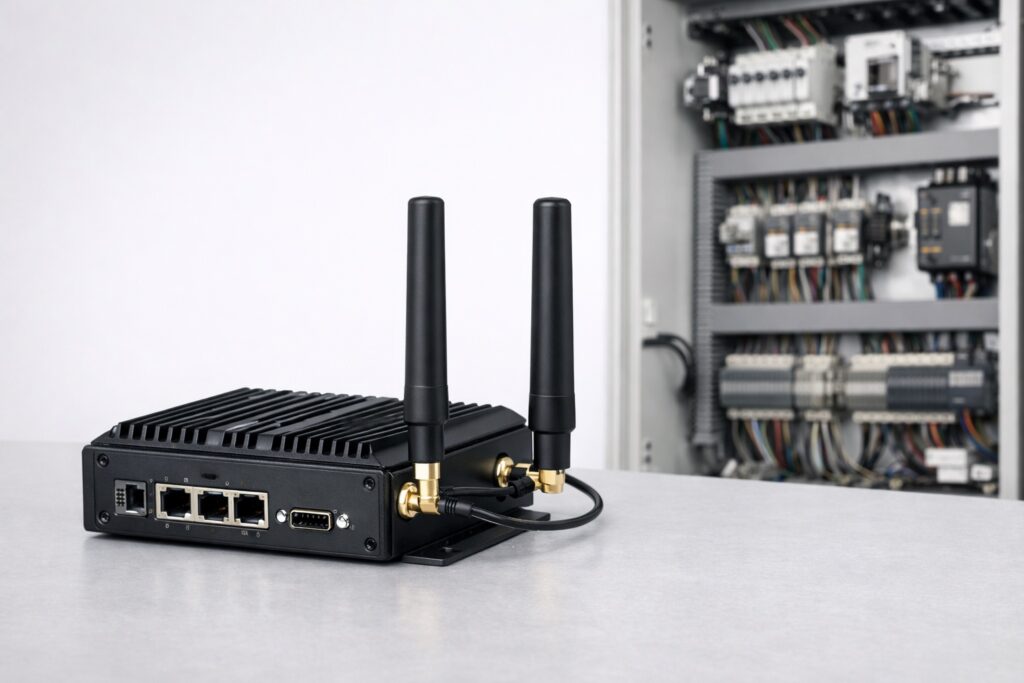

- MIMO. Many LTE modems use 2×2 MIMO and expect two antenna ports.
For embedded designs, internal patch antennas (for example the GL-DY108 series) cover the full cellular range on a small footprint. For external or vehicle use, screw and magnetic mounts (such as GL-DY003-4G and GL-DY016) put the antenna in the clear. Browse the 4G / LTE antenna range or send your bands and modem to our team.
LTE vs LTE-Advanced (LTE-A): does the antenna change?
Short answer: there is no separate “LTE-Advanced antenna.” LTE-Advanced (LTE-A) and LTE-Advanced Pro are modem and network capabilities — carrier aggregation, higher-order MIMO, and 256-QAM — not a new class of antenna. What LTE-A actually asks for on the antenna side is gap-free wideband coverage of every band your modem aggregates, plus enough well-isolated MIMO ports. A good wideband 2×2 (or 4×4) cellular antenna is your LTE-Advanced antenna.
What LTE-Advanced changes (and what it doesn’t)
LTE-Advanced raises throughput with three tools, and all three live in the modem and network, not the antenna:
- Carrier aggregation (CA). The modem combines up to five component carriers — as much as 100 MHz of total bandwidth — often across different bands.
- Higher-order MIMO. LTE-A pushes MIMO beyond basic LTE, and LTE-Advanced Pro devices can use 4×4 MIMO on the downlink.
- 256-QAM. A denser modulation that only holds up with a clean signal, which is exactly where a well-matched antenna and good signal-to-noise ratio matter.
None of that changes the physics of the antenna. It changes what the antenna has to cover cleanly, and how many ports the system expects.
What LTE-A actually needs from the antenna
- Gap-free wideband coverage. If your modem aggregates a 700 MHz band with a 1900 MHz band, a single antenna branch has to work well on both at the same time. Confirm the antenna is matched across the whole span your carrier aggregates, not just at one band edge.
- Enough MIMO ports, well isolated. Match the port count to the modem: most LTE-A gateways are 2×2, while LTE-Advanced Pro or higher-category modems may use 4×4. Each branch needs its own element with good isolation from the others.
- Realistic spacing. MIMO depends on separation. At 700 MHz one wavelength is about 17 in (43 cm), so roughly half-wavelength spacing — around 8.5 in (22 cm) — is a practical target. Packing antennas much closer erodes MIMO gain, especially on the low bands.
| LTE | LTE-Advanced | LTE-Advanced Pro | |
|---|---|---|---|
| Carrier aggregation | None | Up to 5 carriers / 100 MHz | More carriers, wider |
| MIMO (typical) | 2×2 | 2×2, up to 4×4 | Up to 4×4 downlink |
| Modulation | 64-QAM | 256-QAM | 256-QAM and higher |
| What the antenna must do | One wideband part, 2 ports | Wideband across all aggregated bands, 2 isolated ports | Same idea, often 4 ports |
Exact figures vary by LTE Category and chipset, so treat the table as the shape of the requirement rather than a fixed spec.
Does carrier aggregation need more antennas?
No, and this is the most common misconception. You do not add one antenna per aggregated carrier. Carrier aggregation happens inside the modem across bands, so the antenna side only needs one wideband antenna per MIMO branch that covers all the aggregated bands. A 2×2 LTE-A modem still uses two antennas; a 4×4 modem uses four. For choosing and populating those branches, see our guide to picking a 2×2 or 4×4 MIMO antenna and the range of 4G and LTE antennas. For step-by-step selection, see how to choose a 5G or LTE antenna for your router.
FAQ
What does an LTE antenna do?
It connects a cellular device — a modem, router, gateway, or IoT product — to a 4G LTE network by radiating and receiving radio signals on the LTE frequency bands (roughly 600–2700 MHz).
Is an LTE antenna the same as a Wi-Fi antenna?
No. An LTE antenna covers cellular bands and talks to a cell tower; a Wi-Fi antenna covers 2.4/5 GHz and talks to a local router. They are tuned to different frequencies and are not interchangeable, even when they look alike.
Will an LTE antenna work on 5G?
On the 5G bands that reuse LTE spectrum, yes. It will not cover 5G mid-band above about 3 GHz or mmWave — those need an antenna rated for those frequencies.
How do I know which LTE antenna to buy?
Match the antenna’s frequency range to your carrier’s LTE bands, pick a form factor (embedded vs external), match the connector to your modem, and provide the right number of ports for the modem’s MIMO configuration.
Why does my LTE device have two antenna ports?
Most LTE modems use 2×2 MIMO, which needs two antennas to reach rated speeds. Populate both ports rather than leaving one empty.
Is there a special LTE-Advanced antenna?
No. LTE-Advanced is a modem and network capability — carrier aggregation, higher-order MIMO, and 256-QAM. A wideband 2×2 or 4×4 cellular antenna that covers the bands your modem aggregates is an LTE-Advanced antenna; there is no separate part type to buy.
Do I need a 4×4 antenna for LTE-Advanced?
Only if your modem supports 4×4 MIMO. Many LTE-Advanced gateways are 2×2 and need two antenna ports, while higher-category LTE-Advanced Pro modems can use 4×4 and expect four. Match the number of antenna branches to the modem, and keep them well isolated.
Conclusion
An LTE antenna is simply a cellular antenna matched to 4G LTE bands — distinct from Wi-Fi, and only partly overlapping with 5G. Once you know that, choosing one comes down to band coverage, form factor, connector, and MIMO ports. If you want a part matched to your exact carrier bands and modem, our engineering team can recommend one.
